ECM Industries TA-6-S ILSCO AL MEC 4-14 17/64 T UL CSA

Product Description

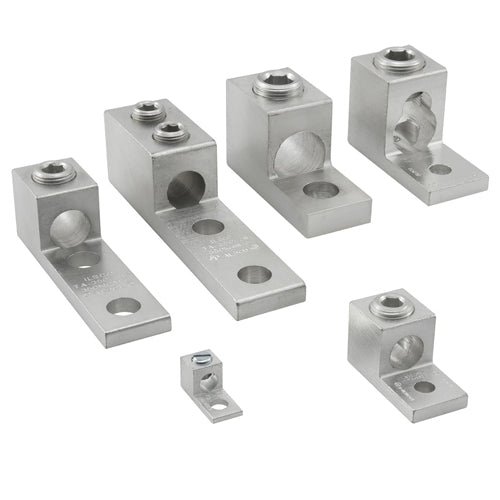

The ECM Industries TA-6-S is a one-conductor dual rated mechanical terminal lug. This product is designed for aluminum and copper conductors ranging from fourteen to four AWG. It features a quarter-inch stud and one bolt hole for secure connections. The lug’s dimensions are one and one-sixteenth inches in length, half an inch in width, and half an inch in height. Crafted from 6061-T6 aluminum alloy, it is electro-plated with tin for improved conductivity and corrosion resistance.

• Manufactured from high-strength 6061-T6 aluminum alloy
• Compatible with both copper and aluminum conductors
• Rated for 2000 VAC with a temperature rating of 90 degrees Celsius

Product Highlights

This terminal lug provides reliable connections in electrical systems and meets various standards for safety and performance.

Product Information

Standard Information

• Manufacturer: ECM Industries
• Manufacturer Part Number: TA-6-S

Technical Specifications

• Application: Terminating Connector Applications
• Conductor Size: 14 to 4 AWG
• Conductor Type: Aluminum/Copper
• Dimensions: 1-1/16 in L x 1/2 in W x 1/2 in H
• Finish: Electro-Plated Tin
• Material: 6061-T6 Aluminum Alloy
• Number of Bolt Holes: 1
• Series: TA Series
• Voltage Rating: 2000 VAC
• Temperature Rating: 90 degrees Celsius
