ECM INDUSTRIES TA-500-S TRANSFORMERS
ECM INDUSTRIES TA-500-S TRANSFORMERS

ECM Industries TA-500-S ILSCO AL MECH 600-4 13/32 T UL CSA

Brand: ECM INDUSTRIES
SKU: TA-500-S
Availability: Out Of Stock
Call for Pricing Call for pricing (215) 326-9845
Call for Pricing Call for pricing (215) 326-9845
Manuals:
HAVE A QUESTION?

Our team is ready to help!

215-326-9845
  • Voomi Supply

    Secure Payments

  • Voomi Supply

    Easy Returns

  • Voomi Supply

    Expert Advice

  • Voomi Supply

    Fast Shipping

Description

Product Description

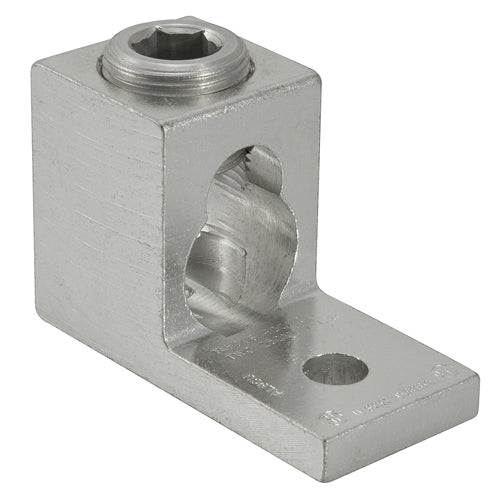

ECM Industries TA-500-S is a reliable mechanical terminal lug designed for connecting aluminum and copper conductors. The product supports conductor sizes ranging from four AWG to six hundred kcmil. It is built from 6061-T6 aluminum alloy for strength and durability, making it suitable for electrical connections.

  • Dual-rated design for aluminum and copper conductors
  • Compatible with 3/8 inch stud and 1 bolt hole
  • Temperature rating of ninety degrees Celsius

Product Highlights

This lug is essential for applications requiring low contact resistance and high reliability in electrical connections. The chamfered wire entry allows for easier installation.

Product Information

Standard Information

  • Manufacturer: ECM Industries
  • UPC: 78366989144
Technical Specifications
Type:
1-Conductor Dual Rated
Application:
Terminating Connector Applications
Conductor Size:
4 AWG to 600 kcmil
Conductor Type:
Aluminum/Copper
Dimensions:
2.8125 inches L x 1.3125 inches W x 1.812 inches H
Finish:
Electro-Plated Tin
Material:
6061-T6 Aluminum Alloy
Number of Bolt Holes:
1
Series:
TA Series
Voltage Rating:
2000 VAC
Temperature Rating:
90 degrees Celsius
Tongue Size:
1.5 inches L x 1.29 inches W x 0.312 inches THK
Tongue Type:
Straight
Standards/Approvals:
CSA File No. LR-29601|UL 453G|UL 486A-B File No. E6207|ECCN EAR99
Stud Size:
3/8 inch
Specifications:
1/2 inch Hex
