ECM Industries TA-500 ILSCO AL MEC 500-4 13/32 T UL CSA

Product Description

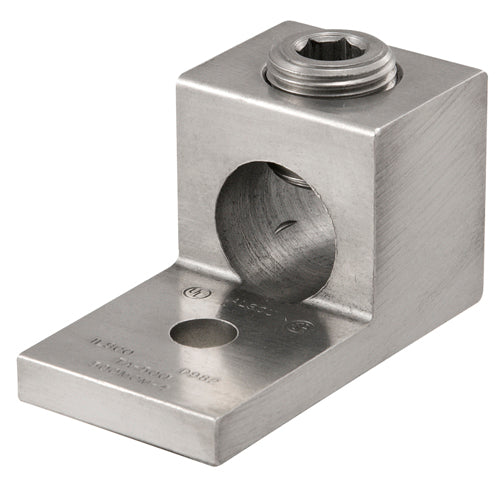

ECM Industries TA-500 is a mechanical terminal lug for electrical connections. This product supports 4 AWG to 500 kcmil aluminum and copper conductors. It is suitable for terminating connector applications.

• Aluminum alloy construction ensures reliability.
• rated for 2000 VAC, with a temperature limit of 90 degrees Celsius.
• Features a chamfered entry to promote easy installation.

Product Highlights

This mechanical terminal lug is designed for dual-rated use, enabling versatility in connections. Its construction from 6061-T6 aluminum alloy and electro-plated tin ensures durability and low contact resistance.

Product Information

Standard Information

• Application: Terminating Connector Applications
• Conductor Size: 4 AWG to 500 kcmil

Technical Specifications

• Conductor Type: Aluminum/Copper
• Dimensions: 2.8125 inches long x 1.5 inches wide x 1.562 inches high
• Finish: Electro-Plated Tin
• Manufacturer Part Number: TA-500
• Material: 6061-T6 Aluminum Alloy
• Number of Bolt Holes: 1
• Series: TA Series
• Voltage Rating: 2000 VAC
• Temperature Rating: 90 degrees Celsius
• Tongue Size: 1.594 inches long x 1.5 inches wide x 0.312 inches thick
• Tongue Type: Straight
• Stud Size: 3/8 inches
• Specifications: 1/2 inches Hex
• Standards/Approvals: CSA File No. LR-29601, UL 453G, UL 486A-B File No. E6207, ECCN EAR99
