ECM Industries TA-350 TA-350 ILSCO AL MEC 350-6 13/32 T UL CSA

Product Description

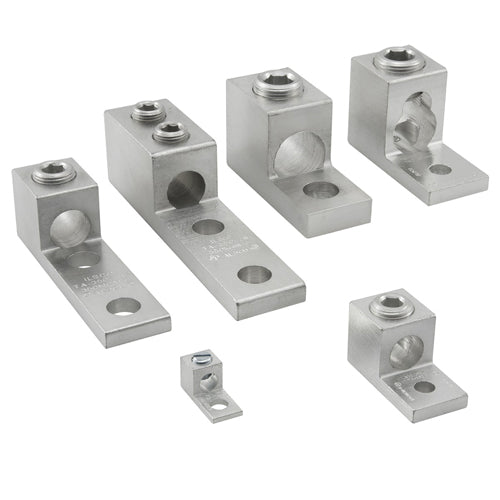

ECM Industries TA-350 is a mechanical terminal lug designed for dual-rated applications. This lug supports aluminum and copper conductors ranging from six AWG to three hundred fifty kcmil. It features a three-eighth inch stud and a single bolt hole to facilitate secure connections. The lug measures two and one-fourth inches in length, one and one-eighth inches in width, and one and one-fourth inches in height.

• Supports copper and aluminum conductors
• Manufactured from 6061-T6 aluminum alloy
• Chamfered wire entry for easy installation

Product Highlights

This terminal lug ensures low contact resistance and high reliability for both copper and aluminum wiring. The robust design accommodates harsh environments and guarantees effective electrical connections.

Product Information

Standard Information

• Application: Terminating Connector Applications
• Conductor Type: Aluminum/Copper

Technical Specifications

• Conductor Size: 6 AWG to 350 kcmil
• Voltage Rating: 2000 VAC
• Temperature Rating: 90 deg C
• Dimensions: 2-1/4 in L x 1-1/8 in W x 1-1/4 in H
• Material: 6061-T6 Aluminum Alloy
• Finish: Electro-Plated Tin
• Number of Bolt Holes: 1
• Stud Size: 3/8 in
• Tongue Size: 1-1/8 in L x 1-1/8 in W x 1/4 in THK
• Tongue Type: Straight
• Series: TA Series
• Standards/Approvals: CSA File No. LR-29601 | UL 453G | UL 486A-B File No. E6207 | ECCN EAR99
