ECM Industries TA-350-2NS ILSCO AL MEC 350-6 9/16-1-3/4 T UL CSA 78366989222

Product Description

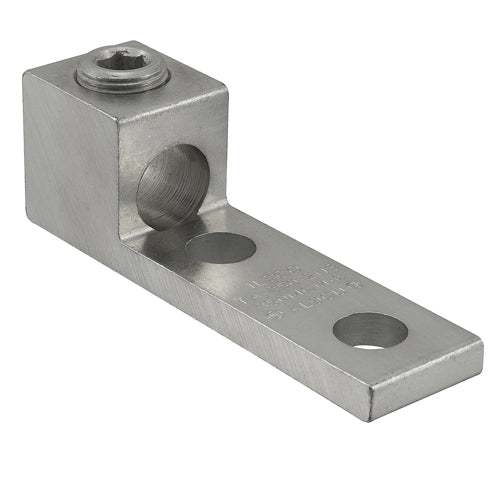

The ILSCO ClearChoice TA-350-2NS is a mechanical terminal lug designed for terminating connector applications. It is suitable for both aluminum and copper conductors from six AWG to three hundred fifty kcmil. This component features a half-inch stud and one bolt hole for secure connections.

• Manufactured from high strength 6061-T6 aluminum alloy
• Provides low contact resistance
• Rated for 2000 VAC operation

Product Highlights

The TA-350-2NS ensures reliable connections in electrical systems. It is dual rated, making it suitable for various conductor types, and is engineered for ease of installation.

Product Information

Standard Information

• Manufacturer: ECM Industries
• Manufacturer Part Number: TA-350-2NS

Technical Specifications

• Conductor Size: 6 AWG to 350 kcmil
• Conductor Type: Aluminum/Copper
• Stud Size: 1/2 in
• Dimensions: 4-5/16 in L x 1-1/8 in W x 1-3/8 in H
• Voltage Rating: 2000 VAC
• Temperature Rating: 90 deg C
• Approvals: CSA File No. LR-29601, UL 453G, UL 486A-B File No. E6207
