ECM Industries TA-300 ILSCO AL MECH 300-6 9/32 T UL CSA

Product Description

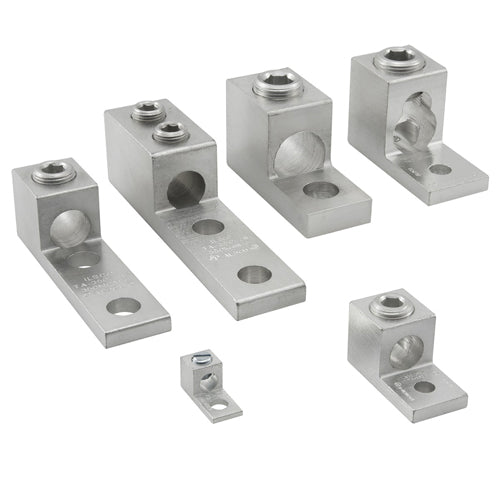

The ECM Industries TA-300 is a mechanical terminal lug designed for use with aluminum or copper conductors. This 1-conductor dual rated terminal lug accommodates conductor sizes from six AWG to three hundred kcmil. It features a quarter-inch stud and offers one bolt hole for secure attachment.

• Manufactured from high-strength 6061-T6 aluminum alloy
• Designed to ensure reliability for both copper and aluminum conductors
• Meets various electrical codes and standards for safety

Product Highlights

This terminal lug allows for low contact resistance and easy installation due to its chamfered wire entry.

Product Information

Standard Information

• Manufacturer: ECM Industries
• Product Type: Mechanical Terminal Lug

Technical Specifications

• Application: Terminating Connector Applications
• Conductor Size: 6 AWG to 300 kcmil
• Conductor Type: Aluminum/Copper
• Dimensions: 2 inches L x 0.8594 inches W x 1.122 inches H
• Finish: Electro-Plated Tin
• Material: 6061-T6 Aluminum Alloy
• Number of Bolt Holes: 1
• Voltage Rating: 2000 VAC
• Temperature Rating: 90 degrees C
• Tongue Size: 0.992 inches L x 0.853 inches W x 0.25 inches THK
• Tongue Type: Straight
