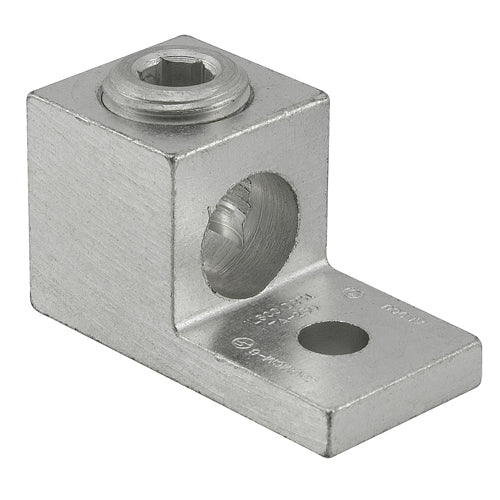

ECM Industries TA-250 TA-250 ILSCO ALUM BLOCK LUG 250MCM-6GA 5/16BOLT HOLE

Product Description

ECM Industries TA-250 is a mechanical terminal lug designed for electrical connections. This lug accommodates conductors ranging from six AWG to two hundred fifty kcmil using either aluminum or copper materials. The product features one bolt hole with a five-sixteenth inch stud, making it versatile for different applications.

• Manufactured from high strength 6061-T6 aluminum alloy.
• Suitable for terminating connector applications.
• Electro-plated tin finish provides low contact resistance.

Product Highlights

This terminal lug is ideal for reliable connections in various electrical systems.

Product Information

Standard Information

• Manufacturer: ECM Industries
• Manufacturer Part Number: TA-250

Technical Specifications

• Application: Terminating Connector Applications
• Conductor Size: 6 AWG to 250 kcmil
• Conductor Type: Aluminum/Copper
• Dimensions: 2 in L x 1 in W x 1.122 in H
• Finish: Electro-Plated Tin
• Material: 6061-T6 Aluminum Alloy
• Number of Bolt Holes: 1
• Series: TA Series
• Specifications: 5/16 in Hex
• Standards/Approvals: CSA File No. LR-29601|UL 453G|UL 486A-B File No. E6207|ECCN EAR99
• Stud Size: 5/16 in
• Temperature Rating: 90 deg C
• Tongue Size: 0.992 in L x 0.99 in W x 0.25 in THK
• Tongue Type: Straight
• Type: 1-Conductor Dual Rated
• Voltage Rating: 2000 VAC
