ECM Industries TA-2/0 TA-2/0 ILSCO Alum Block Lug 2/0-14GA

Product Description

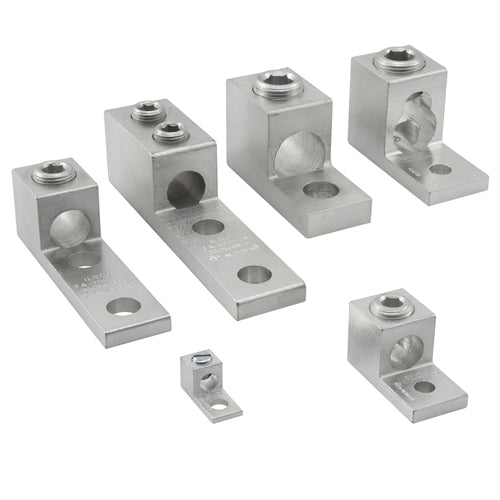

ECM Industries TA-2/0 is an ILSCO mechanical terminal lug. It is designed for use with aluminum and copper conductors, ranging from fourteen to two aught AWG. This terminal lug features a one-quarter inch stud and a single bolt hole, making it suitable for various electrical applications.

• Manufactured from high-strength 6061-T6 aluminum alloy
• Chamfered wire entry for easy installation
• Suitable for use with copper or aluminum conductors

Product Highlights

This terminal lug ensures reliable connections and low contact resistance for conductor terminations.

Product Information

Standard Information

• Manufacturer: ECM Industries
• MPN: TA-2/0

Technical Specifications

• Application: Terminating Connector Applications
• Conductor Size: 14 to 2/0 AWG
• Conductor Type: Aluminum/Copper
• Dimensions: 1.4688 in L x 0.625 in W x 0.794 in H
• Finish: Electro-Plated Tin
• Material: 6061-T6 Aluminum Alloy
• Number of Bolt Holes: 1
• Series: TA Series
• Specifications: 3/16 in Hex
• Standards/Approvals: CSA File No. LR-29601, UL 453G, UL 486A-B File No. E6207, ECCN EAR99
• Stud Size: 1/4 in
• Temperature Rating: 90 deg C
• Tongue Size: 0.843 in L x 0.625 in W x 0.187 in THK
• Tongue Type: Straight
• Type: 1-Conductor Dual Rated
• Voltage Rating: 2000 VAC
