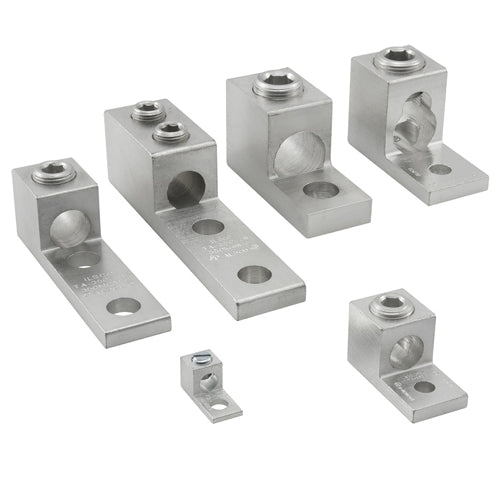

ECM Industries TA-0 ILSCO AL MECH 1/0-14 17/64 T UL CSA

Product Description

ECM Industries TA-0 is a mechanical terminal lug designed for versatile use in electrical applications. This 1-conductor dual rated terminal lug is suitable for both aluminum and copper conductors. It can accommodate a wire size from fourteen to one ought AWG and is compatible with a quarter inch stud. The design includes one bolt hole for secure installation and a tongue size of zero point eight four four inches in length by zero point six two five inches in width and zero point one eight seven inches in thickness.

• Manufactured from high strength 6061-T6 aluminum alloy
• Designed for low contact resistance
• Meets stringent safety standards including CSA and UL approvals

Product Highlights

This terminal lug provides reliability for both copper and aluminum connections while ensuring ease of installation.

Product Information

Standard Information

• Manufacturer: ECM Industries
• UPC: 78366988715

Technical Specifications

• Application: Terminating Connector Applications
• Conductor Size: 14 to 1/0 AWG
• Conductor Type: Aluminum/Copper
• Dimensions: 1.4688 in L x 0.625 in W x 0.794 in H
• Finish: Electro-Plated Tin
• Material: 6061-T6 Aluminum Alloy
• Number of Bolt Holes: 1
• Series: TA Series
• Standards/Approvals: CSA File No. LR-29601 | UL 453G | UL 486A-B File No. E6207 | ECCN EAR99
• Stud Size: 1/4 in
• Temperature Rating: 90 deg C
• Tongue Size: 0.844 in L x 0.625 in W x 0.187 in THK
• Tongue Type: Straight
• Voltage Rating: 2000 VAC
