ECM Industries T3A2-0 ILSCO AL MEC (3)1/0-14 7/16-1 T UL CSA

Product Description

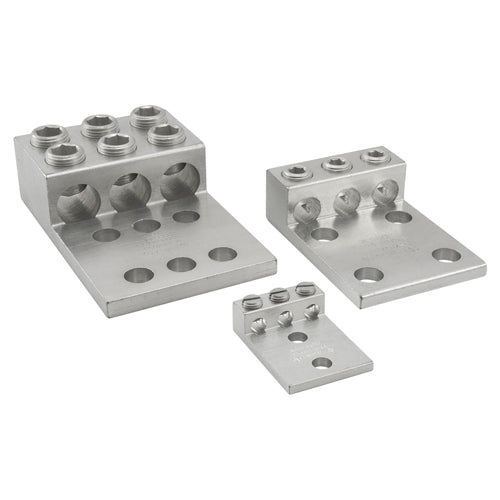

The ECM Industries T3A2-0 is a Mechanical Terminal Lug designed for electrical connections. This terminal lug accommodates aluminum and copper conductors ranging from fourteen to one/0 AWG. Its design includes three conductor terminals stocked on a three/eighth inch stud with three bolt holes for secure mounting.

• Manufactured from high strength 6061-T6 aluminum alloy
• Chamfered wire entry eases installation
• Compatible with both copper and aluminum conductors

Product Highlights

This terminal lug is ideal for terminating connections in a variety of electrical applications, ensuring reliable operation and low contact resistance.

Product Information

Standard Information

• Brand: ECM Industries
• Manufacturer Part Number: T3A2-0

Technical Specifications

• Application: Terminating Connector Applications
• Conductor Size: 14 to 1/0 AWG
• Conductor Type: Aluminum/Copper
• Dimensions: 2.906 inches L x 1.938 inches W x 0.875 inches H
• Finish: Electro-Plated Tin
• Material: 6061-T6 Aluminum Alloy
• Number of Bolt Holes: 3
• Series: T3A
• Specifications: Slotted Hex, 1 inch Mounting Hole Spacing
• Voltage Rating: 2000 VAC
• Temperature Rating: 90 degrees C
• Tongue Size: 2.156 inches L x 1.938 inches W x 1/4 inch THK
• Tongue Type: Straight
