ECM Industries SPA-350 ILSCO AL MEC SPLICER 350-6 T UL CSA

Product Description

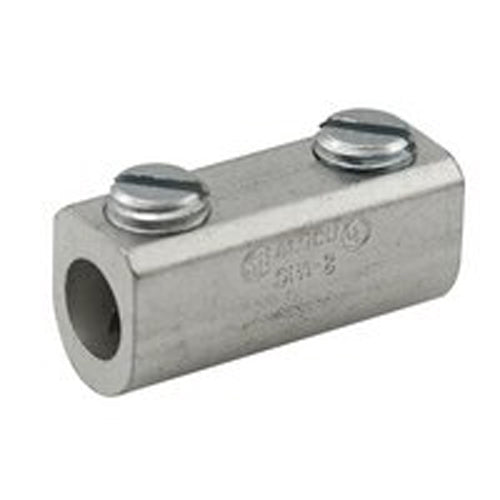

The ECM Industries SPA-350 is a dual-rated splicer designed for aluminum and copper conductors. This splicer accommodates wires from ten American Wire Gauge (AWG) to three hundred fifty thousand circular mils (kcmil). It features two screws for secure connections, making it suitable for use in circuits rated at two thousand volts alternating current (VAC).

• Type SPA dual-rated splicer/reducer
• Electro-plated tin finish for low contact resistance
• Dimensions are two point four six eight inches in length, one inch in width, and one point two five inches in height

Product Highlights

This product excels in electrical applications requiring reliable connections. Its design ensures versatility for various conductor sizes and types.

Product Information

Standard Information

• Manufacturer: ECM Industries
• UPC: 78366985706

Technical Specifications

• Application: For use in circuits rated thirty-five kilovolts or less
• Conductor Size: Ten AWG to three hundred fifty kcmil
• Conductor Type: Aluminum/Copper
• Dimensions: Two point four six eight inches in length, one inch in width, one point two five inches in height
• Finish: Electro-Plated Tin
• Manufacturer Part Number: SPA-350
• Material: Aluminum
• Number of Screws: Two
• Specifications: Five sixteenths inch hex, eleven sixteenths inch diameter screw
• Standards/Approvals: CSA File No. LR29601, UL 486A-B
• Temperature Rating: Ninety degrees Celsius
• Voltage Rating: Two thousand VAC
