ECM INDUSTRIES SPA-2 TERMINALS
ECM INDUSTRIES SPA-2 TERMINALS

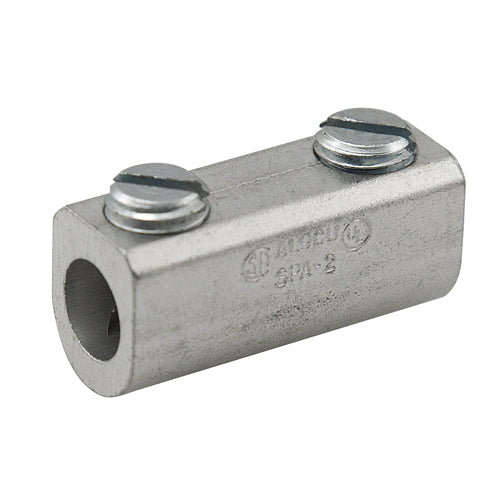

ECM Industries SPA-2 ILSCO AL MEC SPLICER 2-14 T UL CSA

Brand: ECM INDUSTRIES
SKU: SPA-2
Availability: Out Of Stock
Call for Pricing Call for pricing (215) 326-9845
Call for Pricing Call for pricing (215) 326-9845
Manuals:
HAVE A QUESTION?

Our team is ready to help!

215-326-9845
  • Voomi Supply

    Secure Payments

  • Voomi Supply

    Easy Returns

  • Voomi Supply

    Expert Advice

  • Voomi Supply

    Fast Shipping

Description

Product Description

The ECM Industries SPA-2 is an ILSCO ClearChoice Splicer/Reducer, designed for dual rating with aluminum and copper conductors. It accommodates conductor sizes from fourteen to two AWG. The product features a two-screw design for secure connectivity and can handle voltage ratings up to 2000 VAC.

  • Dual rated for aluminum and copper conductors.
  • Voltage rated up to 2000 VAC for robust applications.
  • Compact dimensions of one point one eight seven five inches by zero point four five three one inches by zero point five six two five inches.

Product Highlights

This splicer is suitable for high voltage applications, ensuring reliable connections in electrical circuits.

Product Information

Standard Information

  • Manufacturer: ECM Industries
  • UPC: 78366985700
Technical Specifications
Application:
For use in circuits rated 35 kV or less, with proper high voltage spacing and insulation techniques.
Conductor Size:
14 to 2 AWG
Conductor Type:
Aluminum/Copper
Dimensions:
1.1875 in L x 0.4531 in W x 0.5625 in H
Finish:
Electro-Plated Tin
Material:
Aluminum
Number of Screws:
2
Specifications:
Slotted Hex, 3/8 in Dia Screw
Standards/Approvals:
CSA File No. LR29601, UL 486 A-B File No. E6207, UL 453G File No. E6207, ECCN EAR99
Temperature Rating:
90 deg C
Type:
Type SPA Dual Rated
Voltage Rating:
2000 VAC
