ECM Industries SK-4 ILSCO CU MEC (R)10-6 (T)10SOL T UL CSA

Product Description

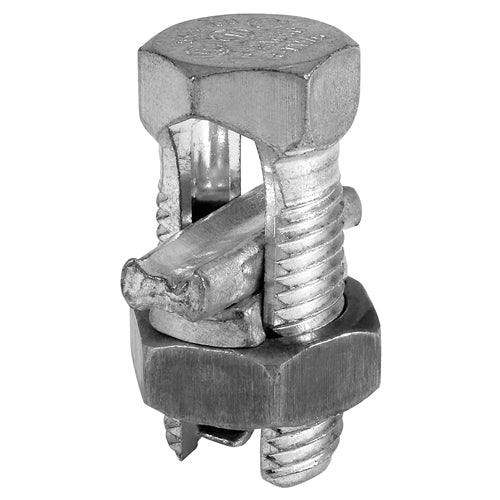

ECM Industries SK-4 is a split bolt connector designed to connect solid, compact, and concentric copper conductors. This connector accommodates conductor sizes ranging from 10 to 6 AWG and is suitable for use in circuits rated at 35 kV or less. The construction features a copper alloy body with electro-tin plating for enhanced conductivity and breakage resistance. The connector can withstand a voltage rating of 2000 VAC and has a recommended torque of 165 in-lb.

• Compatible with ACSR, compact, and concentric conductors
• Bolt size of 0.562 x 1.266 in
• Temperature rating of 90 degrees Celsius

Product Highlights

The SK-4 split bolt connector ensures reliable and efficient electrical connections for various applications. It is essential for maintaining high voltage spacing and utilizing proper insulation techniques.

Product Information

Standard Information

• Manufacturer: ECM Industries
• Model Number: SK-4

Technical Specifications

• Application: Used in circuits rated 35 kV or less.
• Conductor Size: 10 to 6 AWG
• Dimensions: 1.266 inches H x 0.688 inches W
• Material: Copper Alloy
• Finish: Electro-Plated Tin
• Voltage Rating: 2000 VAC
• Temperature Rating: 90 degrees Celsius
• Standards/Approvals: CSA Certified, RUS Certified, UL File No. E12822, PROP65 compliant
