ECM Industries SK-2 ILSCO CU MEC (R)8SOL-2 (T)8SOL T ULCSA REA

Product Description

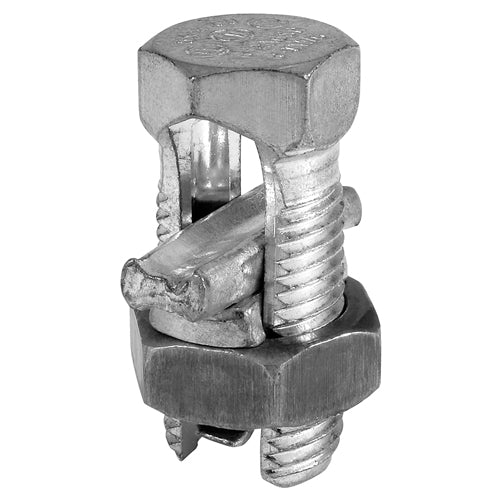

ECM Industries SK-2 is a split bolt connector designed for ACSR, compact, compressed, concentric or solid copper conductors sized 8 to 2 AWG. This connector enables secure and reliable electrical connections for various applications. Its specifications include a bolt size of zero point six eight eight by one point five four seven inches. The connector can handle up to two thousand VAC and is rated for a temperature of ninety degrees Celsius.

• Manufactured from high strength copper alloy
• Electro-tin plated for low contact resistance
• Supports multiple conductor types and sizes

Product Highlights

The SK-2 connector ensures maximum conductivity and high breakage resistance with application versatility.

Product Information

Standard Information

• Manufacturer: ECM Industries
• Manufacturer Part Number: SK-2

Technical Specifications

• Application: Used in circuits rated 35 kV or less, proper spacing and insulation techniques required
• Conductor Size: 8 to 2 AWG, 8 AWG
• Conductor Type: ACSR/Compact/Compressed/Concentric/Solid Copper
• Dimensions: 1.547 in H x 0.812 in W
• Finish: Electro-Plated Tin
• Voltage Rating: 2000 VAC
• Temperature Rating: 90 deg C
• Torque Requirement: 275 in-lb Recommended Torque
