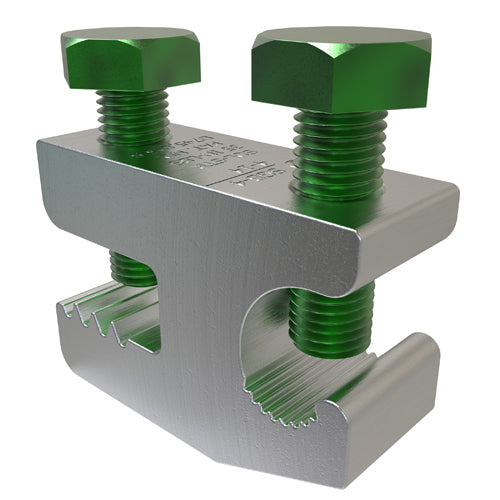

ECM Industries SGB-4 ILSCO Lay-In Ground Lug Dual Rated Conductor Al Range 4-14 Tin Plated UL CSA

Product Description

The ILSCO SGB-4, manufactured by ECM Industries, is a dual rated grounding clamp designed for conductors ranging from fourteen to four AWG. The clamp features a bar thickness of one quarter inch.

• Compatible with both solid and stranded conductors.
• Constructed of aluminum alloy with an electro-plated tin finish.
• Meets various industry standards, ensuring reliability.

Product Highlights

This grounding clamp provides a strong electrical connection and corrosion resistance.

Product Information

Standard Information

• Manufacturer: ECM Industries
• MPN: SGB-4

Technical Specifications

• Application: For grounding connector
• Bar Thickness: 1/4 in
• Color: Green
• Conductor Size: 14 to 4 AWG
• Conductor Type: Solid/Stranded
• Dimensions: 1.375 in L x 0.5 in W x 0.94 in H
• Finish: Electro-Plated Tin
• Material: Aluminum Alloy
• Standards/Approvals: UL 2703|UL 467|UL E34440|ASTM B117-09|PROP65: Cancer and Reproductive Harm - www.P65warnings.ca.gov
• Type: Type SGB
