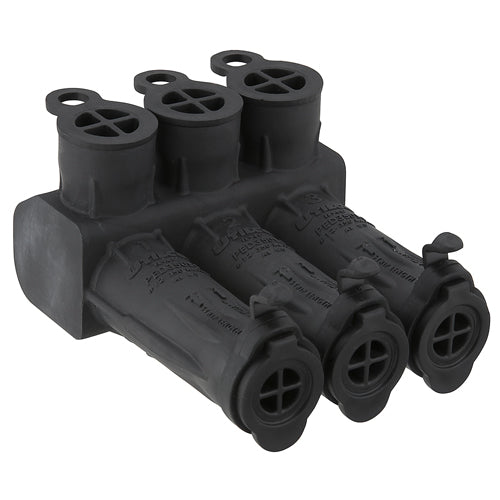

ECM Industries PED3-350SS-DB ILSCO AL MEC (3) 350-10 W INS UL CSA

Product Description

ECM Industries PED3-350SS-DB is a multi-tap connector designed for watertight connections. It allows for secure connections for aluminum and copper conductors. This connector is rated for 600 VAC and can accommodate wire sizes from 10 AWG to 350 kcmil.

• Features a dual rated design for reliability.
• Compatible with aluminum and copper conductors.
• Designed for direct burial in earth and hand holes.

Product Highlights

This multi-tap connector is suitable for applications in wet conditions, offering excellent performance for electrical connections.

Product Information

Standard Information

• Manufacturer: ECM Industries
• MPN: PED3-350SS-DB

Technical Specifications

• Application: For direct burial in earth and hand holes
• Conductor Type: Aluminum/Copper
• Dimensions: 3.7 in L x 4.3 in W x 2.7 in H
• Finish: Electro-Plated Tin
• Material: Aluminum
• Specifications: 10 AWG to 350 kcmil Wire
• Standards/Approvals: ANSI 119.1/119.4, CSA File No. LR29601, UL File No. E125087/486D/88X4, PROP65: Cancer and Reproductive Harm - www.P65warnings.ca.gov
• Temperature Rating: 90 deg C
• Type: Type PED-SS 3-Port Dual Rated Watertight
• Voltage Rating: 600 VAC
