ECM Industries PCT-6-600 ILSCO AL MEC (6)600-4 T INS UL CSA 78366970068

Product Description

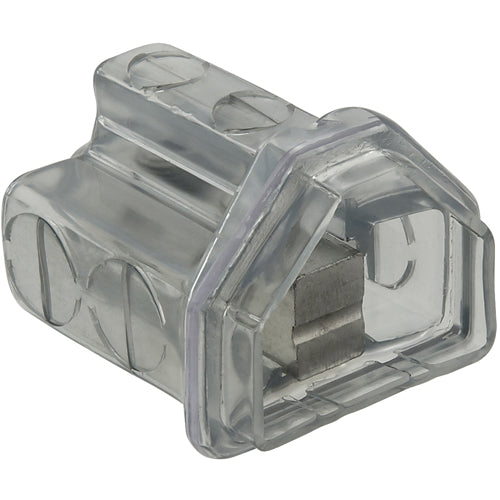

ECM Industries PCT-6-600 is a multi-tap connector designed for aluminum and copper conductors. This connector supports voltages up to 600 VAC and is engineered for use with wire sizes from 4 AWG to 600 kcmil. The unit allows visual inspection through its transparent insulating cover, ensuring operational reliability in various conditions.

• Rated for 600 VAC with a wire range from 4 AWG to 600 kcmil
• Designed for both aluminum and copper conductors
• Features transparent housing for visual inspection of connections

Product Highlights

The PCT-6-600 connector's design facilitates efficient electrical connections while allowing for proper inspections and reducing the chances of faults. Its robust construction is suitable for various electrical applications.

Product Information

Standard Information

• Manufacturer: ECM Industries
• UPC: 78366970068

Technical Specifications

• Conductor Type: Aluminum/Copper
• Dimensions: 8.29 inches L x 3.2 inches W x 3.27 inches H
• Manufacturer Part Number: PCT-6-600
• Material: Aluminum
• Specifications: 4 AWG to 600 kcmil Wire, 3/8 inch Hex
• Standards/Approvals: CSA File No. LR29601, UL File No. E6207/453G/486A/B, ECCN EAR99, PROP65: Cancer and Reproductive Harm
• Temperature Rating: -45 to 90 degrees C
• Type: Type PCT 6-Port Dual Rated Insulated
• Voltage Rating: 600 VAC
