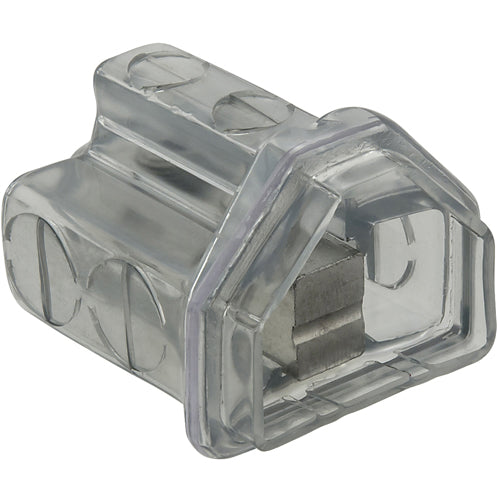

ECM Industries PCT-4-600 ClearTap Multi-Tap Connector 600 VAC

Product Description

ECM Industries PCT-4-600 ClearTap Multi-Tap Connector is designed for dual-rated insulation with aluminum and copper conductors. This connector supports voltages up to six hundred volts alternating current (VAC) and is compatible with wire sizes ranging from four AWG to six hundred kcmil. The product features a robust design that meets industry standards.

• Designed for dual-rated insulation
• Accommodates a wide range of wire sizes
• Supports a maximum voltage of 600 VAC

Product Highlights

This multi-tap connector allows visual inspection while maintaining full insulation, reducing the need for tape. It includes captive screws that enhance reliability and streamline installation processes.

Product Information

Standard Information

• Manufacturer: ECM Industries
• Manufacturer Part Number: PCT-4-600

Technical Specifications

• Conductor Type: Aluminum/Copper
• Dimensions: 5.73 in L x 3.2 in W x 3.27 in H
• Material: Aluminum
• Wire Specifications: 4 AWG to 600 kcmil Wire, 3/8 in Hex
• Voltage Rating: 600 VAC
• Temperature Rating: -45 to 90 deg C
• Standards/Approvals: CSA File No. LR29601 | UL File No. E6207/453G/486A/B | ECCN EAR99 | PROP65: Cancer and Reproductive Harm - www.P65Warnings.ca.gov
