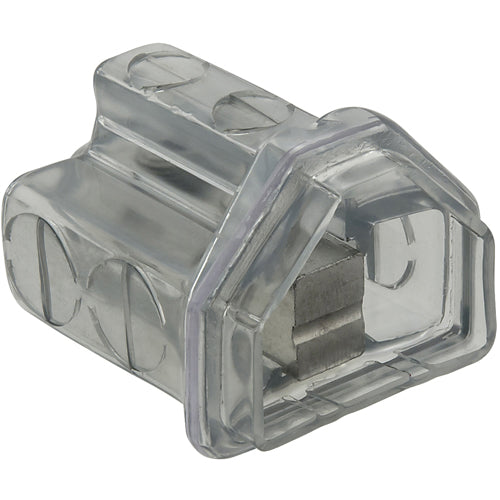

ECM Industries PCT-4-4/0 ILSCO AL MEC (4)4/0-6 T INS UL CSA

Product Description

The ECM Industries PCT-4-4/0 ILSCO ClearTap Multi-Tap Connector enables efficient electrical connections. This four-port connector is suitable for aluminum and copper conductors with a voltage rating of six hundred volts AC. The connector accommodates wire sizes ranging from six to four aught American Wire Gauge (AWG).

• Designed for dual rated use with aluminum and copper conductors.
• Temperature rating of negative forty-five to ninety degrees Celsius.
• Durable construction with complete insulation for reliable performance.

Product Highlights

This connector reduces inventory needs and allows quick access for installation. It features a flexible, transparent cover that allows for easy visual inspections while ensuring no lost caps.

Product Information

Standard Information

• Manufacturer: ECM Industries
• UPC: 78366970050

Technical Specifications

• Conductor Type: Aluminum/Copper
• Dimensions: 4.19 inches L x 2.49 inches W x 2.25 inches H
• Manufacturer Part Number: PCT-4-4/0
• Material: Aluminum
• Specifications: 6 to 4/0 AWG Wire, 5/16 inches Hex
• Standards/Approvals: CSA File No. LR29601 | UL 486A-B | UL 453G File No. E6207 | ECCN EAR99 | PROP65: Cancer and Reproductive Harm - www.P65Warnings.ca.gov
• Temperature Rating: -45 to 90 degrees Celsius
• Type: Type PCT 4-Port Dual Rated Insulated
• Voltage Rating: 600 VAC
