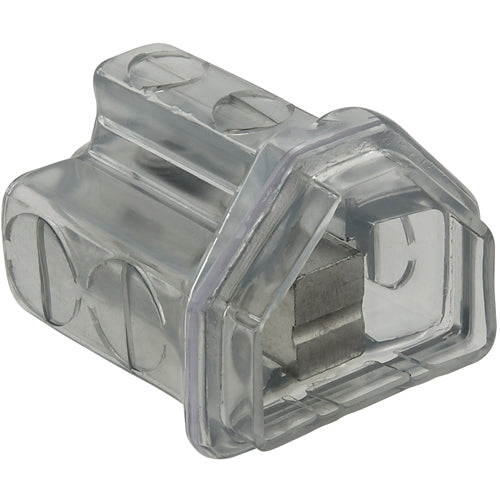

ECM Industries PCT-4-350 ILSCO AL MEC (4)350-6 T INS UL CSA

Product Description

ECM Industries PCT-4-350 is a Multi-Tap Connector designed for safe and reliable electrical connections. This Type PCT 4-Port Dual Rated Insulated connector is made for aluminum and copper conductors, rated for 600 VAC.

• Holds wire sizes from 6 AWG to 350 kcmil
• Temperature range from -45 to 90 degrees Celsius
• Fully insulated design allows for visible inspection

Product Highlights

The PCT-4-350 connector simplifies the wiring process with user-friendly access from both sides. Its design ensures high reliability without the need for taping.

Product Information

Standard Information

• Manufacturer: ECM Industries
• Part Number: PCT-4-350

Technical Specifications

• Conductor Type: Aluminum/Copper
• Dimensions: 5.06 in L x 2.69 in W x 2.65 in H
• Wire Size Range: 6 AWG to 350 kcmil
• Hex Size: 5/16 in
• Temperature Rating: -45 to 90 degrees Celsius
• Voltage Rating: 600 VAC
• Standards/Approvals: CSA File No. LR29601, UL File No. E6207/453G/486A/B
