ECM Industries PCT-2-350 ILSCO AL MEC (2)350-6 T INS UL CSA 78366970056

Product Description

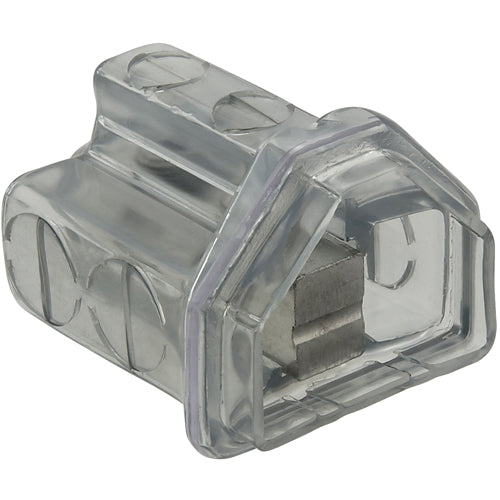

ECM Industries PCT-2-350 is a clear multi-tap connector for aluminum and copper conductors rated for 600 VAC. It accommodates wire sizes from 6 AWG to 350 kcmil. The dual rated design ensures reliability for various electrical applications.

• Dual rated for aluminum and copper conductors
• Temperature rating of -45 to 90 degrees Celsius
• Dimensions: two point seventy-five inches long, two point sixty-nine inches wide, two point sixty-five inches high

Product Highlights

This multi-tap connector simplifies installation and enhances performance. It includes features such as captive pressure screws and a transparent cover for visual inspection.

Product Information

Standard Information

• Manufacturer: ECM Industries
• Manufacturer Part Number: PCT-2-350

Technical Specifications

• Conductor Type: Aluminum/Copper
• Dimensions: two point seventy-five inches L x two point sixty-nine inches W x two point sixty-five inches H
• Voltage Rating: 600 VAC
• Temperature Rating: -45 to 90 degrees Celsius
• Standards/Approvals: UL 486A-B, CSA File No. LR29601
• Specifications: 6 AWG to 350 kcmil Wire, 5/16 inch Hex
