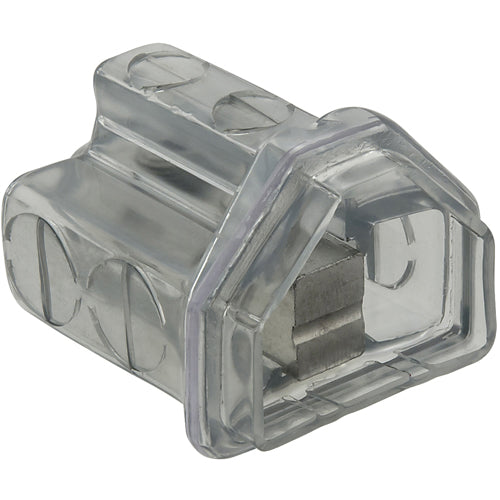

ECM Industries PCT-2-2/0 ILSCO CLEARTAP INS

Product Description

ECM Industries PCT-2-2/0 is a multi-tap connector designed for electrical applications. This type PCT 2-port dual rated insulated connector accommodates aluminum and copper conductors. It is suitable for use with wire sizes ranging from fourteen to two aught. The PCT-2-2/0 connector operates at a voltage rating of six hundred volts alternating current (VAC).

• Accommodates wire sizes from 14 to 2/0 AWG
• Temperature range from -45 to 90 degrees Celsius
• Made of aluminum for durability

Product Highlights

The PCT-2-2/0 multi-tap connector offers reliable electrical connections with enhanced safety features. It features a clear insulating cover for visual inspection and captive pressure screws for secure connections.

Product Information

Standard Information

• Manufacturer: ECM Industries
• Manufacturer Part Number: PCT-2-2/0

Technical Specifications

• Conductor Type: Aluminum/Copper
• Voltage Rating: 600 VAC
• Temperature Rating: -45 to 90 degrees Celsius
• Dimensions: 2.61 inches L x 2.3 inches W x 1.97 inches H
• Specifications: 14 to 2/0 AWG Wire, 3/16 inches Hex
• Standards/Approvals: CSA File No. LR29601, UL 486A-B, UL 453G File No. E6207
