ECM Industries PBTS-3-3/0-F ILSCO INS (3) 3/0-6 2/0-6FX 1-6M T UL CSA

Product Description

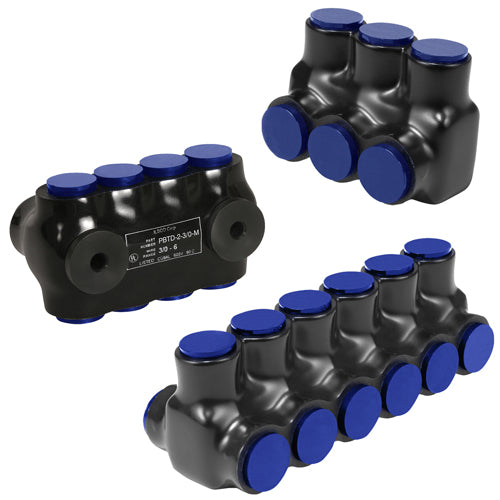

The ECM Industries PBTS-3-3/0-F is a flexible multi-tap connector designed for electrical applications. It features a type PBTF one-side entry with three ports. This dual-rated insulated connector is suitable for use with aluminum and copper conductors with a voltage rating of six hundred volts AC.

• Entry port closure to prevent oxides
• Reusable patented screw design
• Wide wire range from fourteen AWG to three hundred fifty kcmil

Product Highlights

Designed for versatility, this connector enhances vibration resistance and ensures reliable connections. It is pre-filled with a DE-OX oxide inhibiting compound for long-lasting performance in various conditions.

Product Information

Standard Information

• Manufacturer: ECM Industries
• UPC: 78366971240

Technical Specifications

• Conductor Type: Aluminum/Copper
• Dimensions: 2.65 in L x 1.58 in W x 1.86 in H
• Manufacturer Part Number: PBTS-3-3/0-F
• Material: Aluminum
• Specifications: 6 to 3/0 AWG Wire, 1/4 in Hex, 225 A
• Voltage Rating: 600 VAC
• Temperature Rating: -45 to 90 deg C
• Standards/Approvals: CSA File No. LR29601, UL 486A-B, UL 453G File No. E6207
