ECM Industries PBTS-3-1/0 PBTS ILSCO AL MEC (3) 1/0-14 INS W UL

Product Description

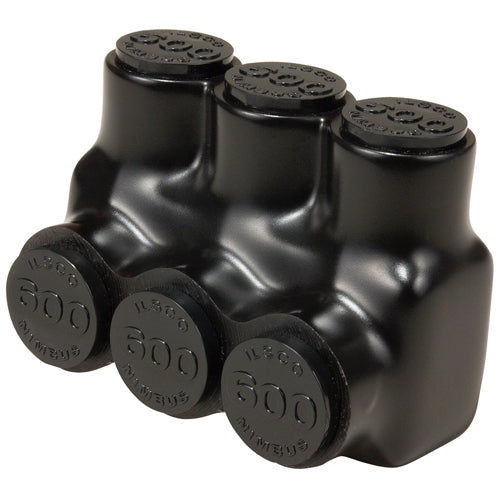

ECM Industries PBTS-3-1/0 is a type PBTS multi-tap connector that supports aluminum and copper conductors. It is designed for applications requiring a dual rated insulated connection. This connector has three ports and accommodates wire sizes from fourteen AWG to one AWG. It is suitable for voltages up to 600 VAC and offers high amperage capacity of up to 170 amps. Operating temperature range is from negative forty-five to ninety degrees Celsius.

• Designed for aluminum/copper conductors
• Supports wire sizes from fourteen AWG to one AWG
• Voltage rated up to 600 VAC

Product Highlights

This connector prevents oxides from forming, ensuring reliability in various environments. The entry port closure is chemical resistant and the connector is pre-filled with DE-OX oxide inhibiting compound.

Product Information

Standard Information

• Manufacturer: ECM Industries
• Manufacturer Part Number: PBTS-3-1/0

Technical Specifications

• Conductor Type: Aluminum/Copper
• Dimensions: 2.29 in L x 1.53 in W x 1.63 in H
• Material: Aluminum
• Wire Range: 14 to 1/0 AWG
• Hex Size: 3/16 in
• Amperage: 170 A
• Temperature Rating: -45 to 90 deg C
• Voltage Rating: 600 VAC
• Standards/Approvals: CSA File No. LR-29601, UL 486A/486B, UL 453G, UL File No. E6207
