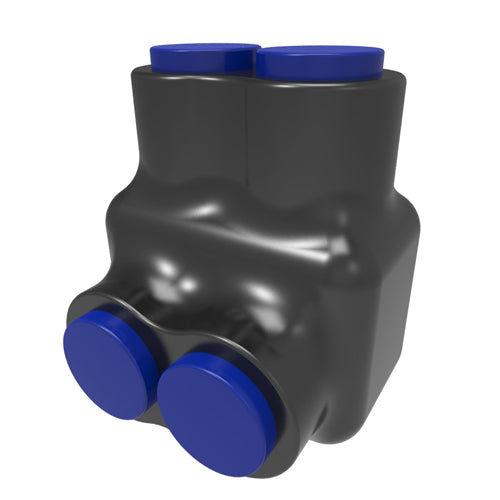

ECM Industries PBTS-2-4-F ILSCO INS(2) 4-14, 8-14 FLEX T UL CSA

Product Description

The ILSCO PBTS-2-4-F is a flexible multi-tap connector designed for dual rating insulation. This connector is built for aluminum and copper conductors, allowing for versatility in various electrical applications. It supports a wire range from fourteen to four AWG and has a voltage rating of six hundred VAC, making it suitable for demanding environments.

• Compatible with 14 to 4 AWG wire
• Insulated for safety and reliability
• Temperature rated from -45 to 90 degrees Celsius

Product Highlights

This connector ensures effective management of electrical connections.

Product Information

Standard Information

• Brand: ECM Industries
• Part Number: PBTS-2-4-F

Technical Specifications

• Conductor Type: Aluminum/Copper
• Dimensions: 1.24 inches L x 1.22 inches W x 1.42 inches H
• Wire Range: 14 to 4 AWG
• Hex Size: 1/8 inch
• Amperage Rating: 95 A
• Voltage Rating: 600 VAC
• Temperature Rating: -45 to 90 degrees Celsius
• Standards/Approvals: CSA File No. LR29601, UL 486A-B
