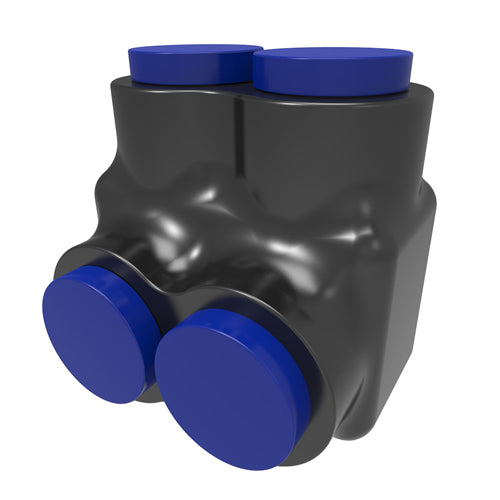

ECM Industries PBTS-2-3/0-F PBTS-2-3/0-F ILSCO INS(2) 3/0-6 2/0-6FX 1-6M W UL CSA

Product Description

ECM Industries presents the PBTS-2-3/0-F Flexible Multi-Tap Connector. This product serves as a dual rated insulated connector designed for aluminum and copper conductors. It operates at a voltage of 600 VAC and accommodates wire sizes from six to three-aught American wire gauge (AWG). The connector features a one-quarter inch hex screw for secure fastening and a current rating of 225 amps. It can function in temperatures between negative forty-five and ninety degrees Celsius.

• Designed for 6 to 3/0 AWG wire
• Reusable patented screw design
• High dielectric strength and chemical resistance

Product Highlights

This connector simplifies connections with flexibility. It helps reduce oxide formation and ensures reliability under vibration.

Product Information

Standard Information

• Manufacturer: ECM Industries
• MPN: PBTS-2-3/0-F

Technical Specifications

• Conductor Type: Aluminum/Copper
• Dimensions: 1.89 in L x 1.58 in W x 1.86 in H
• Voltage Rating: 600 VAC
• Temperature Rating: -45 to 90 deg C
• Standards/Approvals: CSA File No. LR29601|UL File No. E6207/453G/486A/B|ECCN EAR99|PROP65: Cancer and Reproductive Harm
