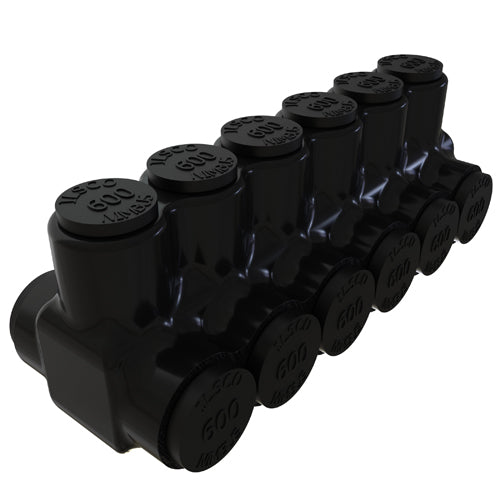

ECM Industries PBTD-6-500 ILSCO AL MECH(6)500MCM-4 INS DUAL ENTRY W UL

Product Description

ECM Industries PBTD-6-500 is a multi-tap connector designed for efficient electrical connections. This dual-rated insulated connector accommodates aluminum and copper conductors. It features a 2-sided entry design for ease of use in tight spaces. The connector supports wire sizes from 4 AWG to 600 kcmil and operates up to 600 VAC. It is suitable for various applications within electrical systems.

• Compatible with wire sizes from 4 AWG to 600 kcmil
• Handles up to 475 A of current
• Temperature range of -45 to 90 degrees Celsius

Product Highlights

This connector is designed for reliability and flexibility in the field, ensuring effective electrical joining.

Product Information

Standard Information

• Manufacturer: ECM Industries
• MPN: PBTD-6-500

Technical Specifications

• Conductor Type: Aluminum/Copper
• Dimensions: 7.59 in L x 2.63 in W x 3.04 in H
• Voltage Rating: 600 VAC
• Current Rating: 475 A
• Temperature Rating: -45 to 90 degrees Celsius
• Standards/Approvals: CSA File No. LR-29601, UL 486A/486B, UL 453G
• Specifications: 4 AWG to 600 kcmil Wire, 3/8 in Hex
