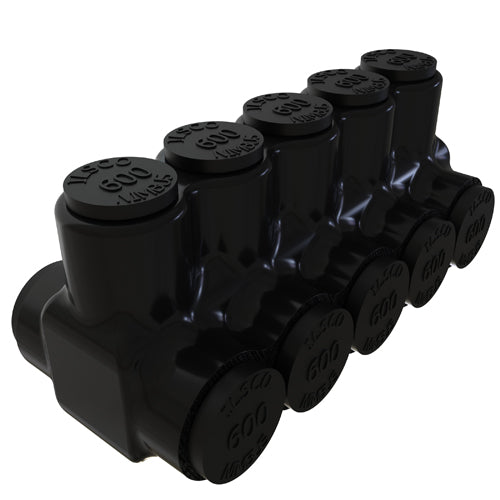

ECM Industries PBTD-5-500 PBTD 2-Sided Entry 5-Port Dual Rated Insulated Multi-Tap Connector

Product Description

ECM Industries PBTD-5-500 is a multi-tap connector designed for dual entry and insulated applications. This product features five ports and is approved for use with aluminum and copper conductors. It supports wire sizes from four AWG to six hundred kcmil, making it versatile for various electrical installations.

• Rated for 600 VAC voltage applications.
• Temperature range from negative forty-five to ninety degrees Celsius.
• Includes a patented screw design for secure connections.

Product Highlights

This connector ensures reliable electrical connections and supports multiple installations in residential and commercial settings.

Product Information

Standard Information

• Manufacturer: ECM Industries
• Conductor Type: Aluminum/Copper

Technical Specifications

• Dimensions: 6.44 inches L x 2.63 inches W x 3.04 inches H
• Manufacturer Part Number: PBTD-5-500
• Voltage Rating: 600 VAC
• Temperature Rating: -45 to 90 degrees Celsius
• Standard Approvals: CSA File No. LR-29601, UL 486A/486B, UL 453G, UL File No. E6207
