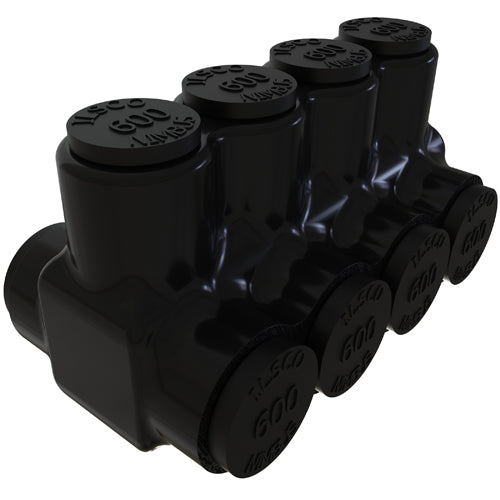

ECM Industries PBTD-4-500 ILSCO AL MECH(4)500MCM-4 INS DUAL ENTRY W UL

Product Description

ECM Industries offers the PBTD-4-500, a multi-tap connector designed for safety and efficiency. This connector features a dual-rated insulated design suitable for aluminum and copper conductors. It supports wire sizes from four AWG up to six hundred kcmil and can handle voltages up to six hundred VAC. The compact dimensions allow for easy installation in tight spaces.

• Supports wire sizes from 4 AWG to 600 kcmil
• Temperature range from -45 to 90 degrees Celsius
• Features patented screw design to prevent oxides

Product Highlights

This multi-tap connector is engineered to ensure reliable performance and ease of installation in various electrical applications. It is built with high dielectric strength plastisol which is also resistant to chemicals and UV rays, enhancing its durability.

Product Information

Standard Information

• Manufacturer: ECM Industries
• Conductor Type: Aluminum/Copper

Technical Specifications

• Voltage Rating: 600 VAC
• Temperature Rating: -45 to 90 degrees Celsius
• Dimensions: 5.28 in L x 2.63 in W x 3.04 in H
• Manufacturer Part Number: PBTD-4-500
• Specifications: 4 AWG to 600 kcmil Wire, 3/8 in Hex, 475 A
• Standards/Approvals: CSA File No. LR-29601, UL 486A/486B, UL 453G
