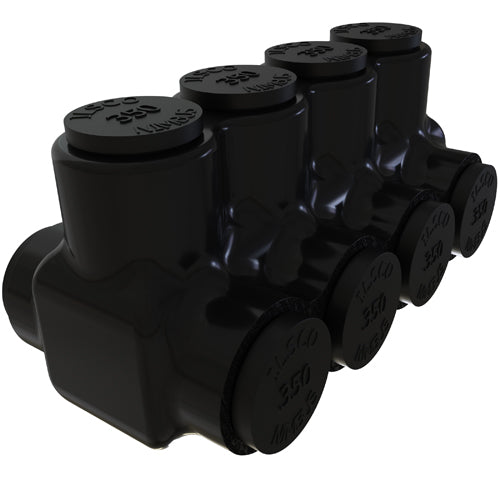

ECM Industries PBTD-4-350 ILSCO AL MEC (4) 350MCM-6 INS DUAL ENTRY W UL

Product Description

ECM Industries PBTD-4-350 is a Multi-Tap Connector designed for use in electrical applications. This connector supports dual-rated insulation for aluminum and copper conductors.

• Rated for 600 VAC and accommodates wire sizes from 6 AWG to 350 kcmil.
• Temperature range of -45 to 90 degrees Celsius.
• Includes features such as a patented screw design and removable port plugs.

Product Highlights

This product ensures reliable performance in various electrical installations and is suitable for both commercial and residential applications.

Product Information

Standard Information

• Manufacturer: ECM Industries
• UPC: 78366907818

Technical Specifications

• Conductor Type: Aluminum/Copper
• Dimensions: 4.61 inches L x 2.25 inches W x 2.62 inches H
• Manufacturer Part Number: PBTD-4-350
• Material: Aluminum
• Specifications: 6 AWG to 350 kcmil Wire, 5/16 inch Hex, 350 A
• Standards/Approvals: CSA File No. LR-29601 | UL 486A/486B | UL 453G | UL File No. E6207 | PROP65: Cancer and Reproductive Harm - www.P65warnings.ca.gov
• Temperature Rating: -45 to 90 degrees Celsius
• Type: Type PBTD 2-Sided Entry 4-Port Dual Rated Insulated
• Voltage Rating: 600 VAC
