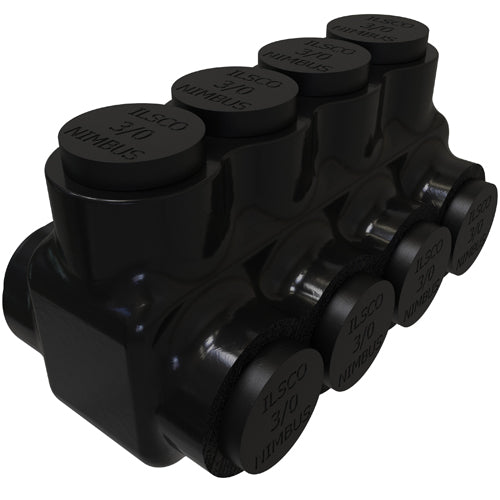

ECM Industries PBTD-4-3/0 ILSCO AL MEC (4) 3/0-6 INS DUAL ENTRY W UL

Product Description

ECM Industries PBTD-4-3/0 is a multi-tap connector designed for dual entry configurations. This insulated connector is rated for aluminum and copper conductors, handling voltages up to 600 VAC. It supports wire sizes from six to three-aught AWG, and is engineered for durability and performance in various electrical applications.

• Compatible with 6 to 3/0 AWG wire
• Rated for up to 225 amps
• Temperature range from -45 to 90 degrees Celsius

Product Highlights

This connector includes a patented screw design to prevent oxides from forming, ensuring long-term reliability.

Product Information

Standard Information

• Manufacturer: ECM Industries
• MPN: PBTD-4-3/0

Technical Specifications

• Conductor Type: Aluminum/Copper
• Voltage Rating: 600 VAC
• Temperature Rating: -45 to 90 deg C
• Dimensions: 3.42 in L x 1.68 in W x 1.86 in H
• Specifications: 6 to 3/0 AWG Wire, 1/4 in Hex, 225 A
• Standards/Approvals: CSA File No. LR-29601 | UL 486A/486B | UL 453G | UL File No. E6207 | PROP65: Cancer and Reproductive Harm - www.P65warnings.ca.gov
• Material: Aluminum
• Type: Type PBTD 2-Sided Entry 4-Port Dual Rated Insulated
