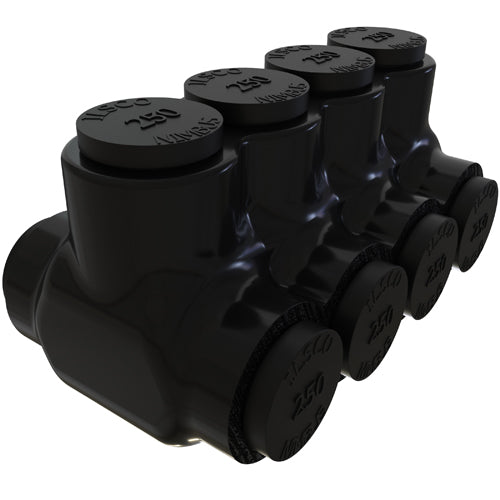

ECM Industries PBTD-4-250 ILSCO AL MEC (4) 250MCM-6 INS DUAL ENTRY W UL

Product Description

ECM Industries PBTD-4-250 is a dual rated insulated multi-tap connector suitable for aluminum and copper conductors. It supports a voltage rating of six hundred VAC and accommodates wire sizes from six AWG to two hundred fifty kcmil. This model includes four ports and features a two-sided entry design.

• Compatible with a broad wire range from six AWG to two hundred fifty kcmil.
• Maintains performance with a temperature rating of minus forty-five to ninety degrees Celsius.
• Pre-filled with DE-OX oxide inhibiting compound for improved reliability.

Product Highlights

This connector is designed for use in electrical applications where reliable connections are critical. Its features allow for flexibility and ease of installation in the field.

Product Information

Standard Information

• Manufacturer: ECM Industries
• Manufacturer Part Number: PBTD-4-250

Technical Specifications

• Conductor Type: Aluminum/Copper
• Dimensions: 3.96 in L x 2 in W x 2.17 in H
• Material: Aluminum
• Wire Size: 6 AWG to 250 kcmil
• Hex Size: 5/16 in
• Max Amperage: 290 A
• Voltage Rating: 600 VAC
• Temperature Rating: -45 to 90 deg C
• Standards/Approvals: CSA File No. LR-29601|UL 486A/486B|UL 453G|UL File No. E6207|PROP65: Cancer and Reproductive Harm - www.P65warnings.ca.gov
