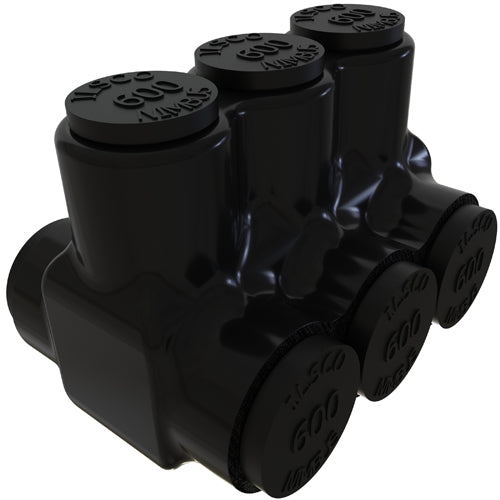

ECM Industries PBTD-3-500 PBTD 2-Sided Entry 3-Port Dual Rated Insulated Multi-Tap Connector

Product Description

The ECM Industries PBTD-3-500 is a dual-rated multi-tap connector designed for use with aluminum and copper conductors. This connector supports 600 volts alternating current (VAC) and accommodates wire sizes ranging from 4 AWG to 600 kcmil. It features a unique two-sided entry design with three ports, ensuring efficient connectivity for electrical installations.

• Supports a wide range of wire sizes
• Operates efficiently in various temperature ranges
• Meets multiple electrical standards and approvals

Product Highlights

The PBTD-3-500 is built to enhance reliability and flexibility in the field. Its patented screw design prevents oxide formation and ensures a secure connection.

Product Information

Standard Information

• Manufacturer: ECM Industries
• Manufacturer Part Number: PBTD-3-500

Technical Specifications

• Conductor Type: Aluminum/Copper
• Dimensions: 4.12 inches L x 2.63 inches W x 3.04 inches H
• Material: Aluminum
• Specifications: 4 AWG to 600 kcmil Wire, 3/8 inches Hex, 475 A
• Voltage Rating: 600 VAC
• Temperature Rating: -45 to 90 degrees C
• Standards/Approvals: CSA File No. LR-29601, UL486A/486B, UL453G
