ECM Industries PBTD-3-4 ILSCO AL MECH (3)4-14 INS DUAL ENTRY T UL

Product Description

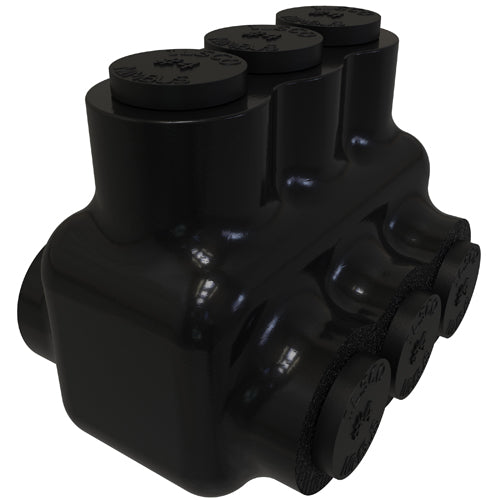

The ECM Industries PBTD-3-4 is a multi-tap connector designed for electrical applications. This dual-rated insulated connector works with aluminum and copper conductors. The connector can handle voltages up to 600 VAC and wire sizes ranging from fourteen to four AWG.

• Dual entry for flexibility in wiring.
• Suitable for both aluminum and copper wire.
• Rated for temperatures from -45 to 90 degrees Celsius.

Product Highlights

This connector is ideal for multi-port connections in various electrical settings. It provides reliable performance under a range of conditions.

Product Information

Standard Information

• Manufacturer: ECM Industries
• MPN: PBTD-3-4

Technical Specifications

• Conductor Type: Aluminum/Copper
• Dimensions: 1.7 in L x 1.25 in W x 1.42 in H
• Material: Aluminum
• Specifications: 14 to 4 AWG Wire, 1/8 in Hex, 95 A
• Voltage Rating: 600 VAC
• Temperature Rating: -45 to 90 degrees Celsius
• Standards/Approvals: CSA File No. LR-29601, UL 486A/486B, UL 453G, UL File No. E6207
