ECM Industries PBTD-3-3/0 ILSCO AL MEC (3) 3/0-6 INS DUAL ENTRY W UL

Product Description

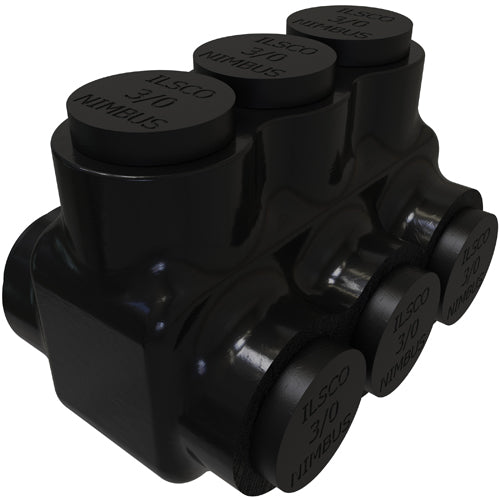

ECM Industries PBTD-3-3/0 is an ILSCO NIMBUS Multi-Tap Connector designed for dual rated insulated applications. This connector features a 2-sided entry and accommodates aluminum and copper conductors. It supports a voltage rating of six hundred VAC and wire sizes from six AWG to three oh AWG.

• Rated for 225 amps
• Temperature range from negative forty-five to ninety degrees Celsius
• Includes UV rated black cover

Product Highlights

The PBTD-3-3/0 connector ensures reliable connections in various electrical setups and allows flexibility in field applications. Its innovative screw design prevents oxides from forming and allows for easy installation.

Product Information

Standard Information

• Manufacturer: ECM Industries
• MPN: PBTD-3-3/0

Technical Specifications

• Conductor Type: Aluminum/Copper
• Dimensions: 2.65 in L x 1.68 in W x 1.86 in H
• Material: Aluminum
• Specifications: 6 to 3/0 AWG Wire, 1/4 in Hex, 225 A
• Voltage Rating: 600 VAC
• Temperature Rating: -45 to 90 deg C
• Standards/Approvals: CSA File No. LR-29601|UL 486A/486B|UL 453G|UL File No. E6207|PROP65: Cancer and Reproductive Harm - www.P65warnings.ca.gov
