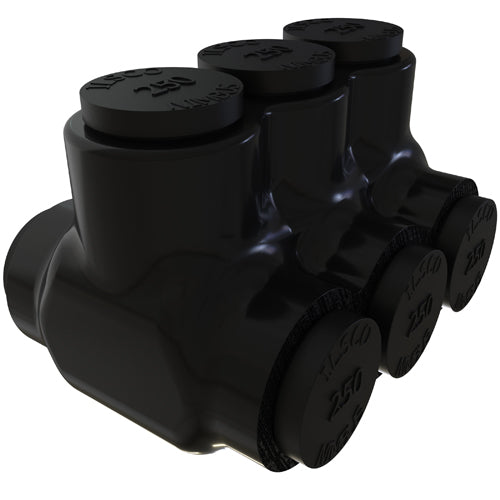

ECM Industries PBTD-3-250 PBTD 2-Sided Entry 3-Port Dual Rated Insulated Multi-Tap Connector

Product Description

The ILSCO PBTD-3-250 is a multi-tap connector designed for dual-rated insulation. This product accommodates aluminum and copper conductors, making it versatile for various electrical applications.

• Compatible with 6 AWG to 250 kcmil wire.
• Temperature rated from -45 to 90 degrees Celsius.
• Pre-filled with DE-OX oxide inhibiting compound.

Product Highlights

This connector ensures reliable performance in diverse conditions and supports broad wire sizes, enhancing flexibility in the field.

Product Information

Standard Information

• Manufacturer: ECM Industries
• MPN: PBTD-3-250

Technical Specifications

• Conductor Type: Aluminum/Copper
• Dimensions: 3.07 in L x 2 in W x 2.17 in H
• Material: Aluminum
• Specifications: 6 AWG to 250 kcmil Wire, 5/16 in Hex, 290 A
• Voltage Rating: 600 VAC
• Temperature Rating: -45 to 90 deg C
• Standards/Approvals: CSA File No. LR-29601|UL 486A/486B|UL 453G|UL File No. E6207|PROP65: Cancer and Reproductive Harm - www.P65warnings.ca.gov
