ECM Industries PBTD-3-1/0 ILSCO AL MECH (3) 1/0-14 INS DUAL ENTRY W UL

Product Description

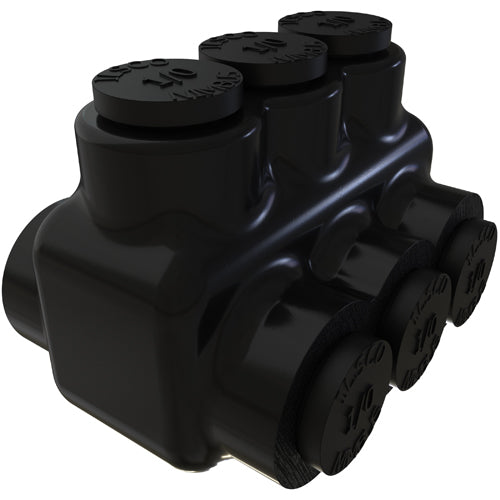

ECM Industries PBTD-3-1/0 is a dual rated insulated multi-tap connector. This device allows for aluminum and copper conductor connections. It is designed for a voltage rating of six hundred volts alternating current. This connector accommodates wire sizes from fourteen to one/ot AWG. It features robust construction to ensure reliability and safety in electrical systems.

• Compatible with a range of wire sizes from fourteen AWG to one/ot AWG.
• Temperature rated from negative forty-five to ninety degrees Celsius.
• Pre-filled with DE-OX oxide inhibiting compound.

Product Highlights

This connector’s design prevents oxide formation and enhances connectivity reliability.

Product Information

Standard Information

• Manufacturer: ECM Industries
• UPC: 78366907738

Technical Specifications

• Conductor Type: Aluminum/Copper
• Dimensions: 2.29 in L x 1.63 in W x 1.63 in H
• Manufacturer Part Number: PBTD-3-1/0
• Material: Aluminum
• Specifications: 14 to 1/0 AWG Wire, 3/16 in Hex, 170 A
• Voltage Rating: 600 VAC
• Temperature Rating: -45 to 90 deg C
• Standards/Approvals: CSA File No. LR-29601, UL 486A/486B, UL 453G, PROP65: Cancer and Reproductive Harm - www.P65warnings.ca.gov
