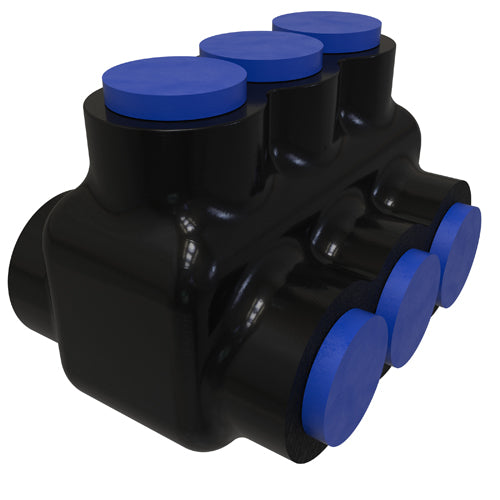

ECM Industries PBTD-3-1/0-F ILSCO INS (3) 1/0-14,1-14 FX 2-14M TUL CSA 78366971256

Product Description

ECM Industries PBTD-3-1/0-F is a flexible multi-tap connector suitable for dual-rated insulated applications. Designed for use with aluminum and copper conductors, it supports a wire range from fourteen to one-aught AWG. This connector ensures reliable connections under varying conditions.

• Rated for 600 VAC and up to 170 Amperes
• Versatile for various conductor sizes
• Includes DE-OX oxide inhibiting compound for enhanced performance

Product Highlights

This product features dual-sided entry for easy installation and high dielectric strength for chemical resistance. It is suitable for both aluminum and copper conductors, making it a flexible choice for electrical tasks.

Product Information

Standard Information

• Brand: ECM Industries
• MPN: PBTD-3-1/0-F

Technical Specifications

• Conductor Type: Aluminum/Copper
• Dimensions: 2.29 in L x 1.63 in W x 1.63 in H
• Material: Aluminum
• Specifications: 14 to 1/0 AWG Wire, 3/16 in Hex, 170 A
• Voltage Rating: 600 VAC
• Temperature Rating: -45 to 90 deg C
• Standards/Approvals: CSA File No. LR-29601, UL 486A/486B, UL 453G, UL File No. E6207, PROP65: Cancer and Reproductive Harm - www.P65warnings.ca.gov
