ECM Industries PBTD-2-500 ILSCO AL MECH(2)600MCM-4 INS DUAL ENTRY W UL

Product Description

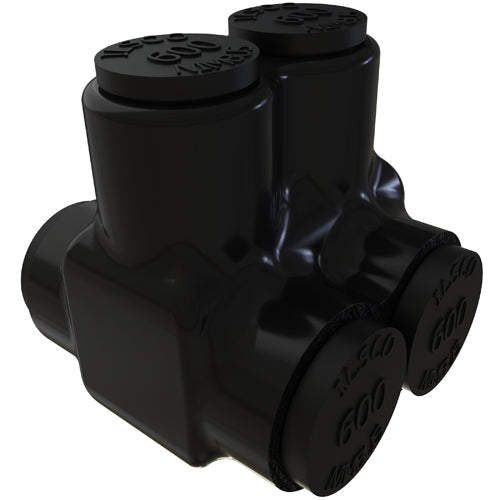

ECM Industries PBTD-2-500 is a multi-tap connector. It features dual rated insulation and is designed for aluminum and copper conductors. This connector is suitable for 600 VAC applications and supports wire sizes from 4 AWG to 600 kcmil. The dimensions of the product are two point ninety-seven inches in length, two point sixty-three inches in width, and three point zero four inches in height.

• Type PBTD 2-sided entry 2-port dual rated insulated connector.
• Supports a broad range of wire sizes from 4 AWG to 600 kcmil.
• Built with high dielectric strength plastisol that is chemical resistant.

Product Highlights

This product ensures reliability and flexibility in various electrical field applications.

Product Information

Standard Information

• Manufacturer: ECM Industries
• Conductor Type: Aluminum/Copper

Technical Specifications

• Manufacturer Part Number: PBTD-2-500
• Voltage Rating: 600 VAC
• Temperature Rating: -45 to 90 deg C
• Specifications: 4 AWG to 600 kcmil Wire, 3/8 in Hex, 475 A
• Dimensions: 2.97 in L x 2.63 in W x 3.04 in H
• Standards/Approvals: CSA File No. LR-29601|UL 486A/486B|UL 453G|UL File No. E6207|PROP65: Cancer and Reproductive Harm - www.P65warnings.ca.gov
• Material: Aluminum
