ECM Industries PBTD-2-4 ILSCO AL MECH (2)4-14 INS DUAL ENTRY T UL

Product Description

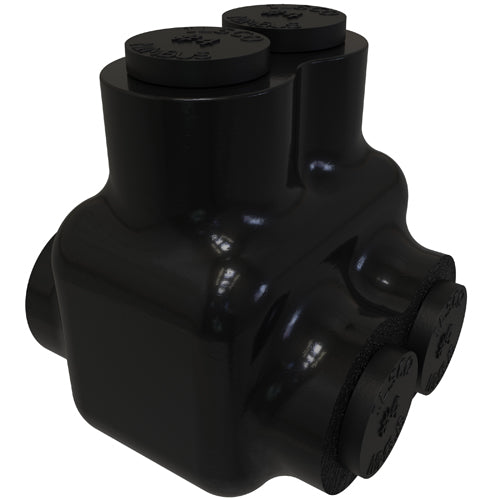

ECM Industries PBTD-2-4 ILSCO NIMBUS Multi-Tap Connector is designed for multi-port applications. This Type PBTD connector features a dual-rated insulated design and is suitable for both aluminum and copper conductors. It operates at a voltage rating of 600 VAC and supports wire sizes from fourteen to four AWG. This connector provides reliable performance in various electrical connections.

• Supports aluminum and copper conductors
• Rated for 600 VAC voltage
• Temperature range of -45 to 90 degrees Celsius

Product Highlights

The PBTD-2-4 connector is engineered for durability and reliability in electrical installations. Its unique design helps prevent oxides from forming, ensuring consistent conductivity.

Product Information

Standard Information

• Manufacturer: ECM Industries
• MPN: PBTD-2-4

Technical Specifications

• Conductor Type: Aluminum/Copper
• Dimensions: 1.24 in L x 1.25 in W x 1.42 in H
• Material: Aluminum
• Specifications: 14 to 4 AWG Wire, 1/8 in Hex, 95 A
• Standards/Approvals: CSA File No. LR-29601, UL 486A/486B, UL 453G
• Temperature Rating: -45 to 90 degrees Celsius
• Voltage Rating: 600 VAC
