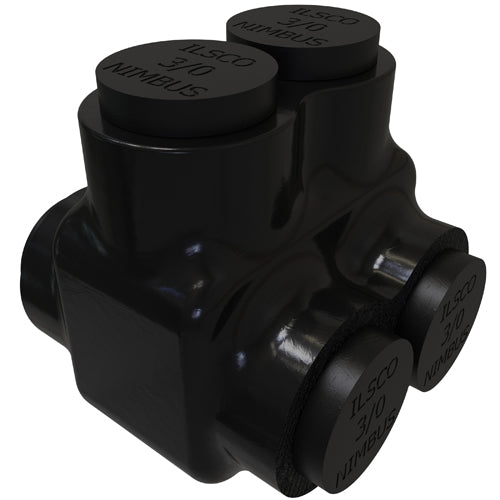

ECM Industries PBTD-2-3/0 ILSCO Al MEC (2) 3/0-6 Ins DUAL ENTRY W UL

Product Description

ECM Industries PBTD-2-3/0 is a dual rated insulated multi-tap connector. It is designed for aluminum and copper conductors. This connector supports a voltage rating of six hundred volts alternating current. It is suitable for wire sizes ranging from six to three/0 AWG. The product measures one point eight nine inches in length by one point six eight inches in width by one point eight six inches in height.

• Two-sided entry design
• Supports aluminum and copper conductors
• Temperature rating of -45 to 90 degrees Celsius

Product Highlights

This connector offers reliable connections for electrical installations, preventing oxidation and ensuring strong performance.

Product Information

Standard Information

• Brand: ECM Industries
• MPN: PBTD-2-3/0

Technical Specifications

• Conductor Type: Aluminum/Copper
• Dimensions: One point eight nine inches L x one point six eight inches W x one point eight six inches H
• Material: Aluminum
• Wire Capacity: Six to three/0 AWG, one quarter inch Hex, 225 A
• Standards/Approvals: CSA File No. LR-29601, UL 486A/486B, UL 453G, UL File No. E6207
• Temperature Rating: -45 to 90 degrees Celsius
• Voltage Rating: Six hundred VAC
• Type: Type PBTD 2-Sided Entry 2-Port Dual Rated Insulated
