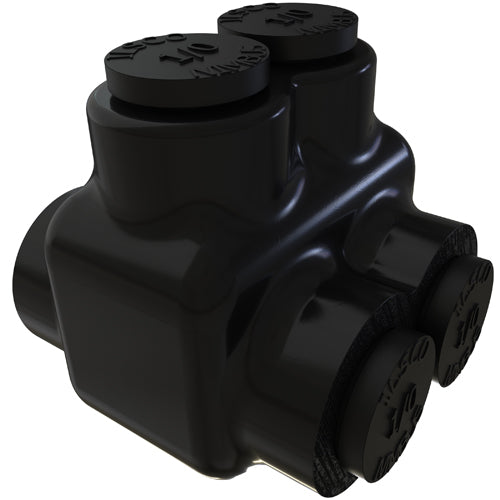

ECM Industries PBTD-2-1/0 ILSCO INSUL AL MECH (2) 1/0-14 DUAL T UL CSA

Product Description

ECM Industries PBTD-2-1/0 is a multi-tap connector designed for dual rated insulated applications. This product features a two-sided entry with two ports suitable for aluminum and copper conductors. It operates under a voltage of 600 VAC and accommodates wire sizes ranging from fourteen to one aught AWG. The temperature range of this connector is from negative forty-five to ninety degrees Celsius.

• Multiple conductor compatibility, aluminum and copper
• Designed for dual rated insulation
• Durable construction with a broad temperature range

Product Highlights

This multi-tap connector provides flexibility and reliability in electrical applications. It prevents oxides from forming through a patented screw design.

Product Information

Standard Information

• Conductor Type: Aluminum/Copper
• Manufacturer Part Number: PBTD-2-1/0

Technical Specifications

• Dimensions: 1.67 in L x 1.63 in W x 1.63 in H
• Voltage Rating: 600 VAC
• Temperature Rating: -45 to 90 deg C
• Specifications: 14 to 1/0 AWG Wire, 3/16 in Hex, 170 A
• Standards/Approvals: CSA File No. LR-29601, UL 486A/486B, UL 453G, UL File No. E6207, PROP65: Cancer and Reproductive Harm - www.P65warnings.ca.gov
