ECM Industries PBT-350 ILSCO AL MEC 350MCM-6 INS W UL

Product Description

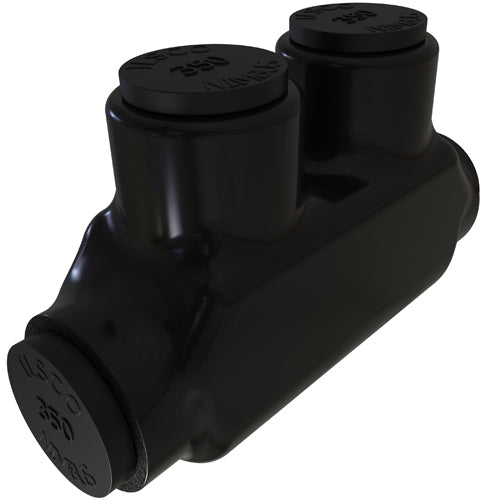

The ECM Industries PBT-350 is a type PBT dual rated insulated splicer and reducer connector. It accommodates aluminum and copper conductors and has voltage capabilities up to six hundred volts AC. This product is suitable for wire sizes from six AWG to three hundred fifty kcmil. The connector features a five-sixteenth inch hex and is rated for a current of three hundred fifty amperes. It operates effectively within a temperature range of negative forty-five to ninety degrees Celsius.

• Type PBT dual rated insulated splicer/reducer connector
• Compatible with aluminum and copper conductors
• Temperature range from -45 to 90 degrees Celsius

Product Highlights

This connector is designed for versatility in various electrical applications, ensuring reliable connections and reducing the risk of oxidation.

Product Information

Standard Information

• Conductor Type: Aluminum/Copper
• Material: Aluminum

Technical Specifications

• Dimensions: 4.75 in L x 1.31 in W x 2.43 in H
• Manufacturer Part Number: PBT-350
• Specifications: 6 AWG to 350 kcmil Wire, 5/16 in Hex, 350 A
• Voltage Rating: 600 VAC
• Temperature Rating: -45 to 90 deg C
• Standards/Approvals: CSA File No. LR-29601 | UL 486A/486B | UL 453G | UL File No. E6207 | PROP65: Cancer and Reproductive Harm - www.P65warnings.ca.gov
