ECM Industries PBT-250 ILSCO AL MEC 250MCM-6 INS W UL

Product Description

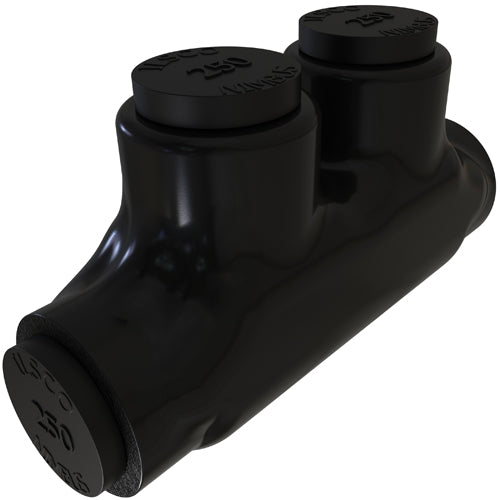

ECM Industries presents the PBT-250, an insulated splicer and reducer connector. This product supports aluminum and copper conductors with a voltage rating of 600 VAC. It can handle wire sizes from six AWG to two hundred fifty kcmil and is rated for a maximum current of two hundred ninety amps. The PBT-250's dimensions are four point twenty-eight inches in length, one point zero six two inches in width, and two point zero four inches in height.

• Compatible with aluminum and copper conductors.
• Rated for 600 VAC with a current capacity of 290 A.
• Temperature range from -45 to 90 degrees Celsius.

Product Highlights

The PBT-250 connector is designed for reliability and flexibility in field applications. It features an entry port closure preventing oxide formation and accommodates a broad wire range from fourteen AWG to seven hundred fifty kcmil.

Product Information

Standard Information

• Manufacturer: ECM Industries
• Manufacturer Part Number: PBT-250

Technical Specifications

• Conductor Type: Aluminum/Copper
• Dimensions: 4.28 in L x 1.062 in W x 2.04 in H
• Material: Aluminum
• Specifications: 6 AWG to 250 kcmil Wire, 5/16 in Hex, 290 A
• Temperature Rating: -45 to 90 degrees Celsius
• Voltage Rating: 600 VAC
• Standards/Approvals: CSA File No. LR-29601, UL 486A-B
