ECM Industries PBT-1/0 ILSCO AL MEC 1/0-14 INS W UL

Product Description

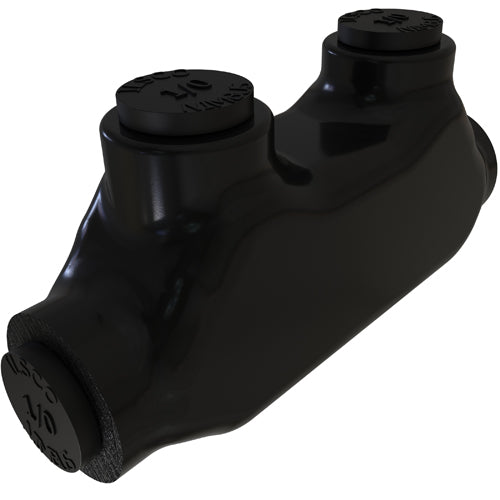

ECM Industries PBT-1/0 is a splicer/reducer connector. It is designed for aluminum and copper conductors. The connector is dual rated, insulated, and suitable for a range of wire sizes from fourteen to one-aught AWG.

• Type PBT 2-Port 2-Wire Insulated
• Compatible with 600 VAC
• Temperature rated from minus forty-five to ninety degrees Celsius

Product Highlights

Reliable connection for electrical applications with a robust design to prevent oxidation.

Product Information

Standard Information

• Manufacturer: ECM Industries
• MPN: PBT-1/0

Technical Specifications

• Conductor Type: Aluminum/Copper
• Voltage Rating: 600 VAC
• Temperature Rating: -45 to 90 degrees Celsius
• Dimensions: 3.11 inches L x 0.94 inches W x 1.44 inches H
• Specifications: 14 to 1/0 AWG Wire, 3/16 inch Hex, 170 A
• Material: Aluminum
• Manufacturer Part Number: PBT-1/0
• Standards/Approvals: CSA File No. LR-29601, UL 486A/486B, UL 453G
