ECM Industries PBHD6-750 ILSCO AL MEC (6) 750-2 13/32-1/38 TUR

Product Description

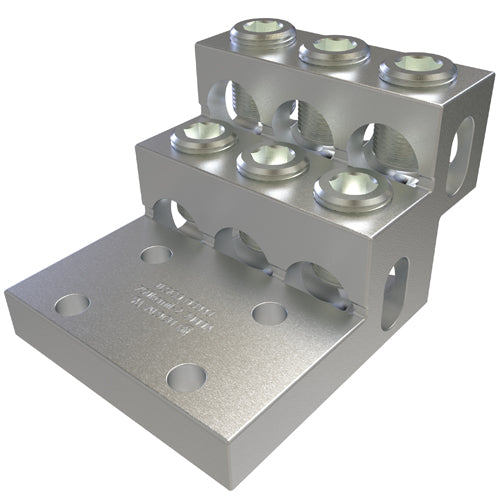

ECM Industries presents the PBHD6-750, a panelboard lug designed for heavy-duty applications. This lug accommodates conductors ranging from two AWG to seven hundred fifty kcmil and is suitable for use with copper or aluminum conductors.

• Type PBHD is built for durability.
• Compatible with circuits rated up to thirty-five kV.
• Features six ports and a bolt size of three-eighths inch.

Product Highlights

The PBHD6-750 is essential for secure and efficient electrical connections in high-voltage environments.

Product Information

Standard Information

• Manufacturer: ECM Industries
• UPC: 78366900124

Technical Specifications

• Type: Type PBHD Heavy Duty
• Conductor Range: 2 AWG to 750 kcmil
• Electrical Ratings: 35 kV
• Finish: Electro Tin Plated
• Height: 2.96 inches
• Width: 3.84 inches
• Length: 5 inches
• Hex Size: 1/2 inch
• Hole Spacing: 1.38 inches
• Bolt Stud Size: 3/8 inch
• Material: Aluminum Alloy
• Standards/Approvals: CSA Certified, UL 486A/B, File No. E6207
• Suitable For Use With: Copper or Aluminum Conductor
