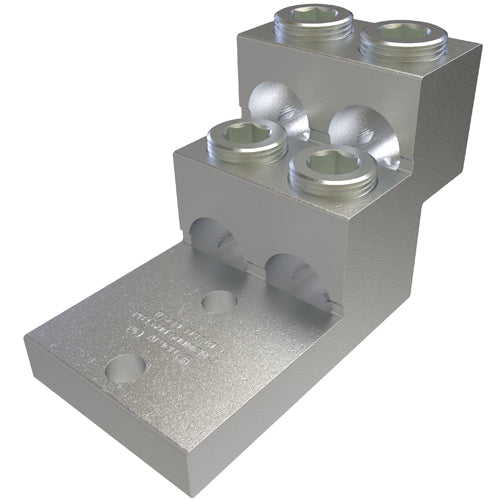

ECM Industries PB4-600 ILSCO AL MEC 600-2 13/32-1 3/8 T UL

Product Description

ECM Industries offers the PB4-600, a dual-rated panelboard stack lug ideal for connecting aluminum or copper conductors. This lug accommodates wire sizes from 2 AWG to 600 kcmil and features a 3/8 inch bolt/stud connection. The lug design supports electrical ratings of 2000 VAC and includes a convenient hole spacing of 1-3/8 inches.

• Manufactured from high-strength aluminum alloy
• Electro-plated tin finish for low contact resistance
• Stacked design optimizes space and reduces installation time

Product Highlights

The PB4-600 is suitable for circuits rated up to 35 kV when proper installation methods are followed. It ensures reliability in various applications, making it a versatile choice for electrical professionals.

Product Information

Standard Information

• Manufacturer: ECM Industries
• UPC: 78366917976

Technical Specifications

• Application: Terminating Connector Applications
• Bolt Stud Size: 3/8 inch
• Conductor Range: 2 AWG to 600 kcmil
• Electrical Ratings: 2000 VAC
• Finish: Electro-Plated Tin
• Height: 3 inches
• Hex Size: 1/2 inch
• Hole Spacing: 1-3/8 inches
• Length: 4.9063 inches
• Material: Aluminum
• Standards/Approvals: CSA File No. LR29601, UL 486A-B, UL 453G
• Suitable For Use With: Aluminum or Copper Conductor
• Type: Type PB Dual Rated
• Width: 2.4688 inches
