ECM Industries PB2-600 PB2-600 ILSCO AL MEC 600-2 13/32-1 3/8 T UL

Product Description

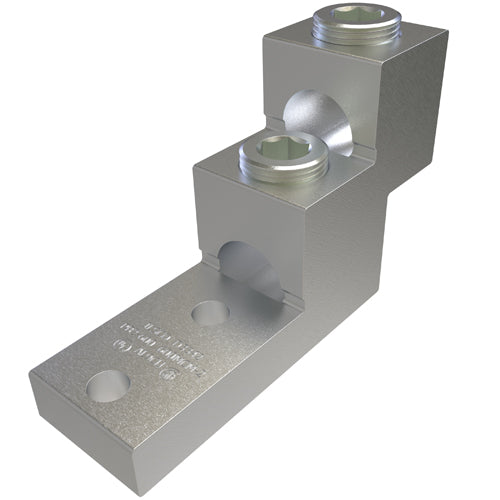

ECM Industries PB2-600 is a dual-rated panelboard stack lug ideal for connecting aluminum or copper conductors from two AWG to six hundred kcmil. It features a three-eighths inch bolt/stud for secure connections and is rated for electrical applications up to two thousand VAC. This lug is designed for ease of installation with a stacked configuration to save space and reduce connection time.

• Dual-rated for aluminum and copper conductors.
• Secure three-eighths inch bolt/stud connection.
• Rated for up to two thousand VAC.

Product Highlights

This panelboard lug promotes versatility for various applications, ensuring reliability for both copper and aluminum conductors in electrical installations.

Product Information

Standard Information

• Manufacturer: ECM Industries
• UPC: 78366919525

Technical Specifications

• Application: Terminating Connector Applications
• Bolt Stud Size: 3/8 in
• Conductor Range: 2 AWG to 600 kcmil
• Electrical Ratings: 2000 VAC
• Finish: Electro-Plated Tin
• Height: 3 in
• Hex Size: 1/2 in
• Hole Spacing: 1-3/8 in
• Length: 4.9063 in
• Material: Aluminum
• Standards/Approvals: CSA File No. LR29601|UL 486A-B|UL 453G|UL File No. E6207|ECCN EAR99
• Suitable For Use With: Aluminum or Copper Conductor
• Type: Type PB Dual Rated
• Width: 1-1/2 in
