ECM Industries PB2-600-2N ILSCO AL MEC 600-2 13/32-1 3/8 T UL

Product Description

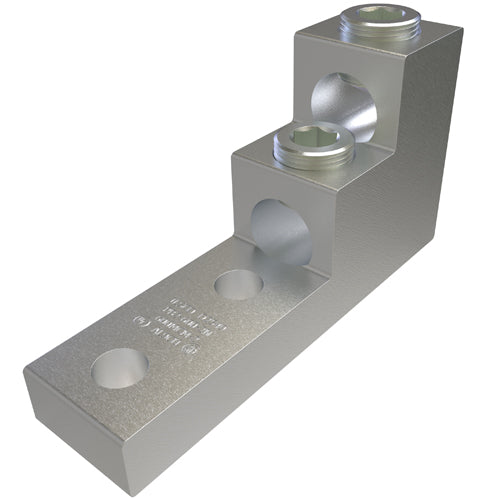

The ECM Industries PB2-600-2N is an ILSCO® ClearChoice® Panelboard Stack Lug. It is designed for use with aluminum or copper conductors ranging from 2 AWG to 600 kcmil.

• Type PB Dual Rated
• 2000 VAC electrical rating
• Manufactured from high-strength aluminum

Product Highlights

This lug features a stacked design that saves space. It also comes with a chamfered wire entry for easy installation.

Product Information

Standard Information

• Manufacturer: ECM Industries
• UPC: 78366919526

Technical Specifications

• Application: Terminating Connector Applications
• Bolt Stud Size: 1/2 in
• Conductor Range: 2 AWG to 600 kcmil
• Electrical Ratings: 2000 VAC
• Finish: Electro-Plated Tin
• Height: 3 in
• Hex Size: 1/2 in
• Hole Spacing: 1-3/4 in
• Length: 5-11/16 in
• Manufacturer Part Number: PB2-600-2N
• Material: Aluminum
• Standards/Approvals: CSA File No. LR29601, UL 486A-B, UL 453G
• Suitable For Use With: Aluminum or Copper Conductor
• Type: Type PB Dual Rated
• Width: 1-1/2 in
