ECM Industries NBAS-006-1-B ILSCO AL MEC (6) 4-14 (1) MTG T URCSA

Product Description

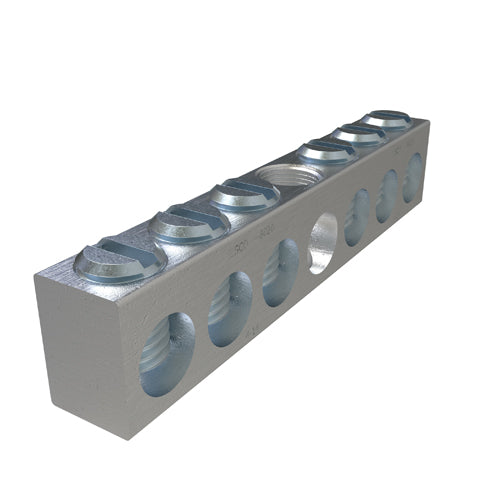

ECM Industries NBAS-006-1-B is a dual-rated neutral bar designed for reliable electrical connections. This product supports a cable range from #14 to 4 AWG and features seven taps with one mounting hole. With a voltage rating of 600 VAC, it is constructed from durable aluminum alloy and has an electro tin plating for enhanced conductivity.

• Supports aluminum and copper conductors
• Easy mounting with screw connection
• Meets various industry standards

Product Highlights

The ECM Industries NBAS-006-1-B neutral bar combines strength and versatility, making it suitable for various grounding and bonding applications.

Product Information

Standard Information

• Manufacturer: ECM Industries
• UPC: 78366900556

Technical Specifications

• Application: For use with aluminum/copper conductor
• Bar Height: 0.437 inches
• Bar Length: 2.232 inches
• Bar Width: 0.312 inches
• Cable Main: #14 to 4 AWG
• Connection Type: Screw
• Finish: Electro Tin Plated
• Manufacturer Part Number: NBAS-006-1-B
• Material: Aluminum Alloy
• Mounting Hole Quantity: 1
• Standards/Approvals: UL Listed; CSA File No. LR 2601; UL Recognized; PROP65 compliant
• Tap Quantity: 7
• Type: Type NBAS Dual Rated
• Voltage Rating: 600 VAC
